SPECIFICATIONS
-
Fork
RockShox Judy Silver Air, Turnkey Lockout, 29 100x9mm QR, 100mm, Diffusion Black
-
Tyres
Maxxis Rekon, 29x2.4, folding bead, 60 TPI, Black, EXO TR (Tubeless Ready)
-
Shifter
Shimano Cues U-6000 11sp without display
-
Rear Derailleur
Shimano U6000 10/11sp, GS, 11-50T
-
Chain
KMC X-Glide, 9/10/11sp with Missing Link (fully CUES compatible)
-
Cassette
Shimano LG400 11sp, 11-50T
-
Front Brake
Shimano MT200 Hydraulic, Resin pad
-
Rear Brake
Shimano MT200 Hydraulic, Resin pad
-
Rotors
Shimano RT-26, 6 bolt, 160mm rear, 180mm front
-
Handlebar
760mm wide, 31.8mm clamp, 30mm rise, 6 degree backsweep
-
Stem
50mm length, 31.8mm clamp, 7 deg rise
-
Seatpost
Nukeproof Tracker Seatpost, 31.6mm diameter, 400mm length, 15mm offset, 2-bolt design
-

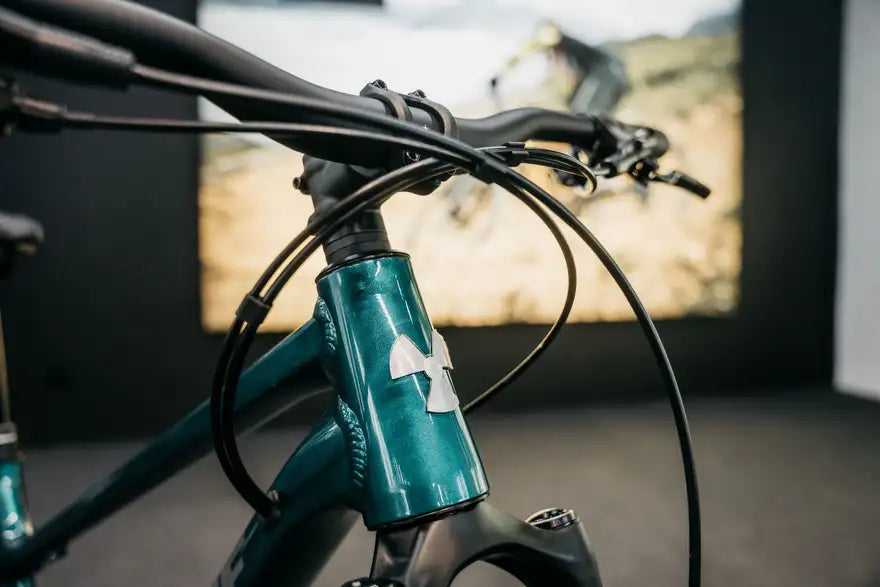

Headset
Neco H156E Semi Integrated
-
Grips
Lock on grip, 135mm length, with integrated bar end
-
Pedals
FPD NW-303 Polymer pedals with reflectors
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


NUKEPROOF TRACKER
| XS | S | M | L | XL | XXL | ||
| A | Reach | 395 | 415 | 435 | 455 | 475 | 500 |
| B | Stack | 579 | 609 | 625 | 635 | 644 | 676 |
| C | Effective toptube length | 561 | 590 | 614 | 637 | 660 | 694 |
| D | Seattube length | 340 | 380 | 410 | 440 | 460 | 500 |
| E | Effective seattube angle (degrees) | 74 | 74 | 74 | 74 | 74 | 74 |
| F | Seattube angle, actual (degrees) | 72 | 72 | 72 | 72 | 72 | 72 |
| G | Saddle height for saddle offset | 600 | 650 | 700 | 750 | 800 | 850 |
| H | Headtube length | 100 | 110 | 110 | 120 | 130 | 140 |
| I | Headtube angle (degrees) | 67 | 67 | 67 | 67 | 67 | 67 |
| J | Chainstay length | 430 | 430 | 445 | 445 | 445 | 445 |
| K | Wheelbase | 1092 | 1113 | 1165 | 1189 | 1213 | 1252 |
| L | Bottom bracket drop | -50 | -50 | -70 | -70 | -70 | -70 |
| M | Fork travel | 80 | 100 | 100 | 100 | 100 | 100 |
| N | Fork offset | 44 | 44 | 44 | 44 | 44 | 44 |
