Santa Cruz

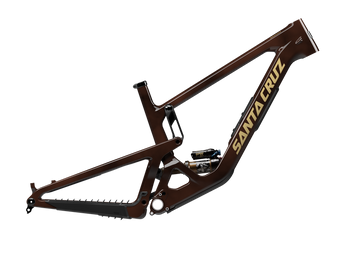

SANTA CRUZ BRONSON CC FRAMESET (5TH GEN)

$5,750.00
New
Size: M
Color: Translucent Root Beer
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size: M
Color: Translucent Root Beer

Highlight

When you can only have one bike, and your mission is to ride that bike into oblivion, then this is the one. From manicured bike parks to blown out loamy berms, alpine lines to backyard trails, the Bronson is as at home in the air as it is in the dirt. For the rider with a Peter Pan disposition or who wants to get into a pan flat tabletop position, the Bronson encourages bad behavior.

Bronson Frame 2025 – Santa Cruz Bicycles

SPECIFICATIONS
  • Sizes
    M, L
  • Colors

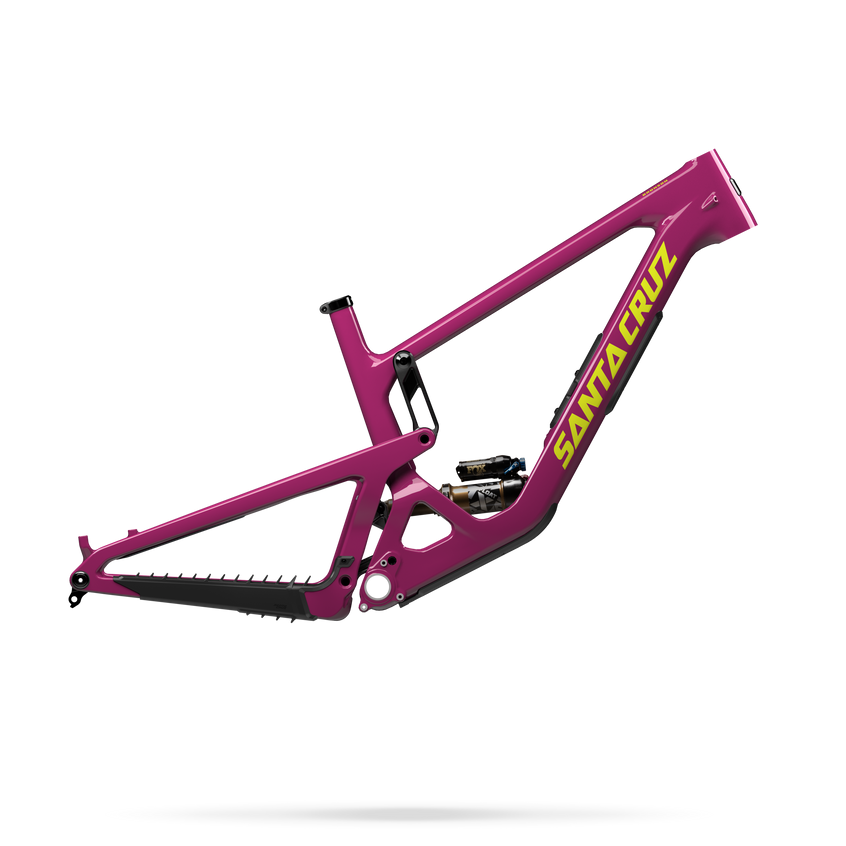

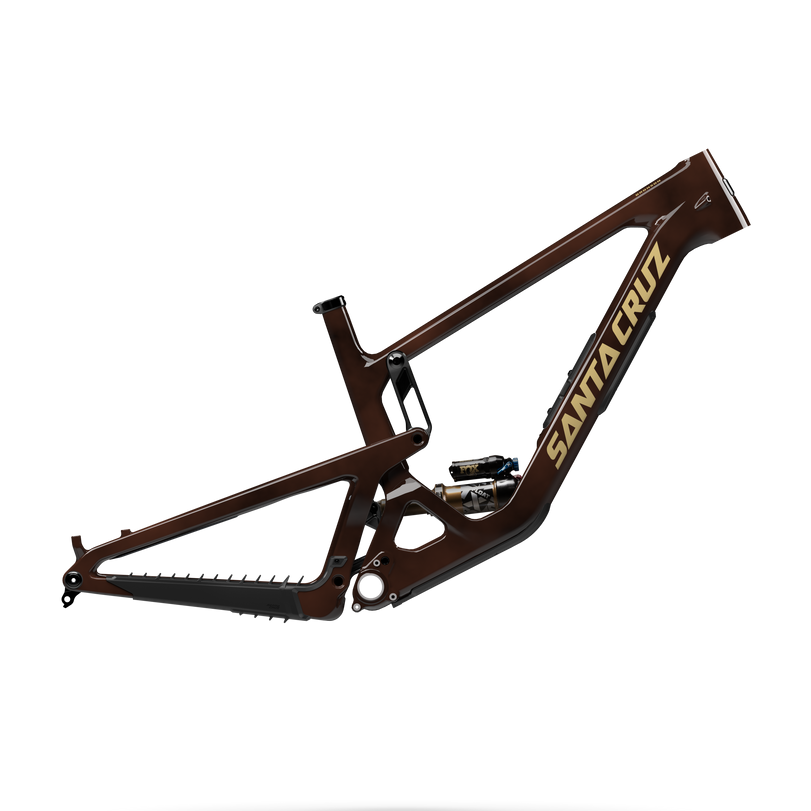

    Translucent Root Beer, Kalimotxo
  • Material
    Carbon CC
  • Travel
    150mm
  • Shock
    FOX Float X Factory, 230x57.5
  • Wheel Size
    MX
  • Weight
    6.84 lbs / 3.1 kg

Sizing & Geometry

BRONSON FRAME

s m l xl xxl
Reach (Hi/Lo) 435/432 460/457 480/478 500/498 525/523
Stack (Hi/Lo) 623/625 632/634 641/643 659/661 668/670
Head Tube Angle (Hi/Lo) 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9° 64.2°/63.9°
Head Tube Length 110 120 130 150 160
Rear Center 437 439 442 445 448
Front Center 771 800 825 853 883
BB Height (Hi/Lo) 344/341 344/341 344/341 344/341 344/341
BB Drop Front (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
BB Drop Rear (Hi/Lo) 10/13 10/13 10/13 10/13 10/13
Wheelbase 1208 1240 1267 1299 1331
Top Tube Length 572 595 614 636 662
Seat Tube Length 380 405 430 460 500
Seat Tube Angle (Hi/Lo) 77.6°/77.3° 77.9°/77.6° 78.2°/77.9° 78.3°/78° 78.4°/78.1°
Standover Height 721 723 725 727 731



All units are in millimeters or degrees.
