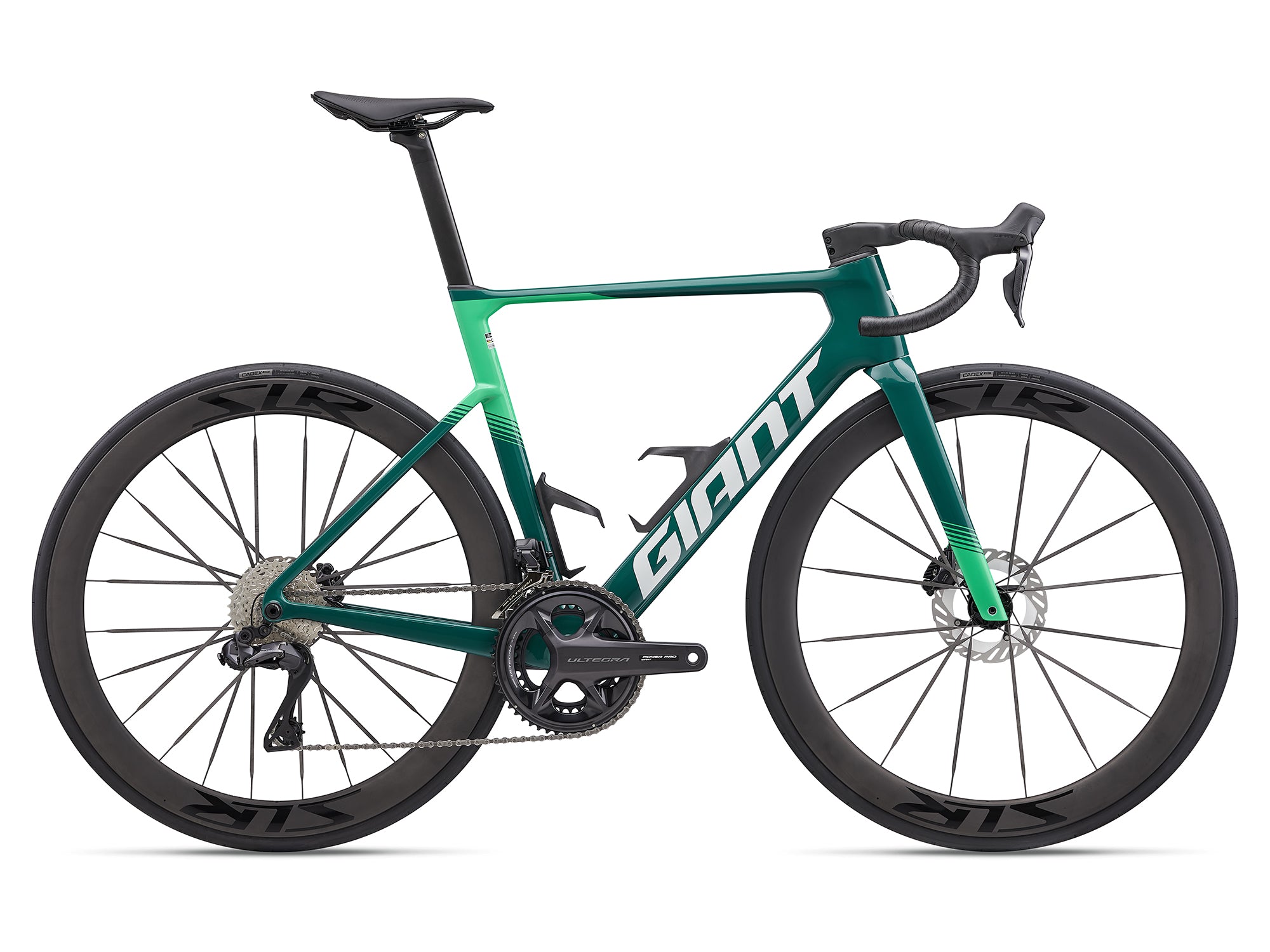

Home > Shop > Racing > GIANT PROPEL ADVANCED PRO 0 - ULT (4TH GEN)

Highlight

NOW EVEN FASTER, THIS AERO ROCKETSHIP IS BUILT FOR SPEED WHEN IT MATTERS MOST. THE REENGINEERED FRAMESET IS EVEN MORE ADEPT AT SLICING THROUGH WIND, AND IT’S ALSO LIGHTER THAN THE PREVIOUS GENERATION. THE RESULT? RACE-WINNING EFFICIENCY THAT’S HARD TO BEAT.

KEY PERFORMANCE FACTORS

Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce outstanding overall aero performance.

Easier Adjustability

All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning Efficiency

Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s now lighter than the previous generation for an improved stiffness-to-weight ratio.

SPECIFICATIONS

Sizes

XS, S, M, ML, L, XL
Colors

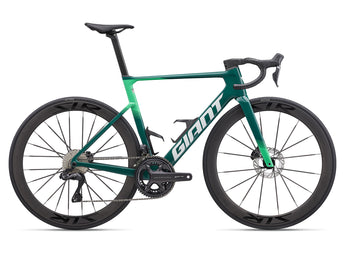

Abyss Teal
Frame

Advanced-Grade Composite, disc, 142x12mm Pitch 1.0 (UDH)
Fork

Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc, 100x12mm Pitch 1.5
Shock

N/A
Handlebar

Giant Contact SLR 0 Aero Integrated 1-piece
XS & S: 380/360mm
M & ML: 400/370mm
L & XL: 420/390mm
Grips

Stratus Lite 2.0
Stem

Giant Contact SLR 0 Aero Integrated 1-piece
XS:80mm, S:90mm, M:100mm, ML:110mm, L:110mm, XL:120mm
Seatpost

Giant Vector, composite, -5/+15mm offset
Saddle

Giant Fleet SL, stainless steel rail, 7x7mm
Pedals

N/A
Shifters

Shimano Ultegra Di2, ST-R8170
Front Derailleur

Shimano Ultegra Di2, FD-R8150
Rear Derailleur

Shimano Ultegra Di2, RD-R8150
Brakes

Shimano Ultegra hydraulic, Shimano RT-CL800 rotors, centerlock [F]160mm, [R]140mm
Brake Levers

Shimano Ultegra Di2 hydraulic, ST-R8170
Cassette

Shimano Ultegra 12-speed, 11x34T, CS-R8100
Chain

Shimano Ultegra, CN-M8100
Crankset

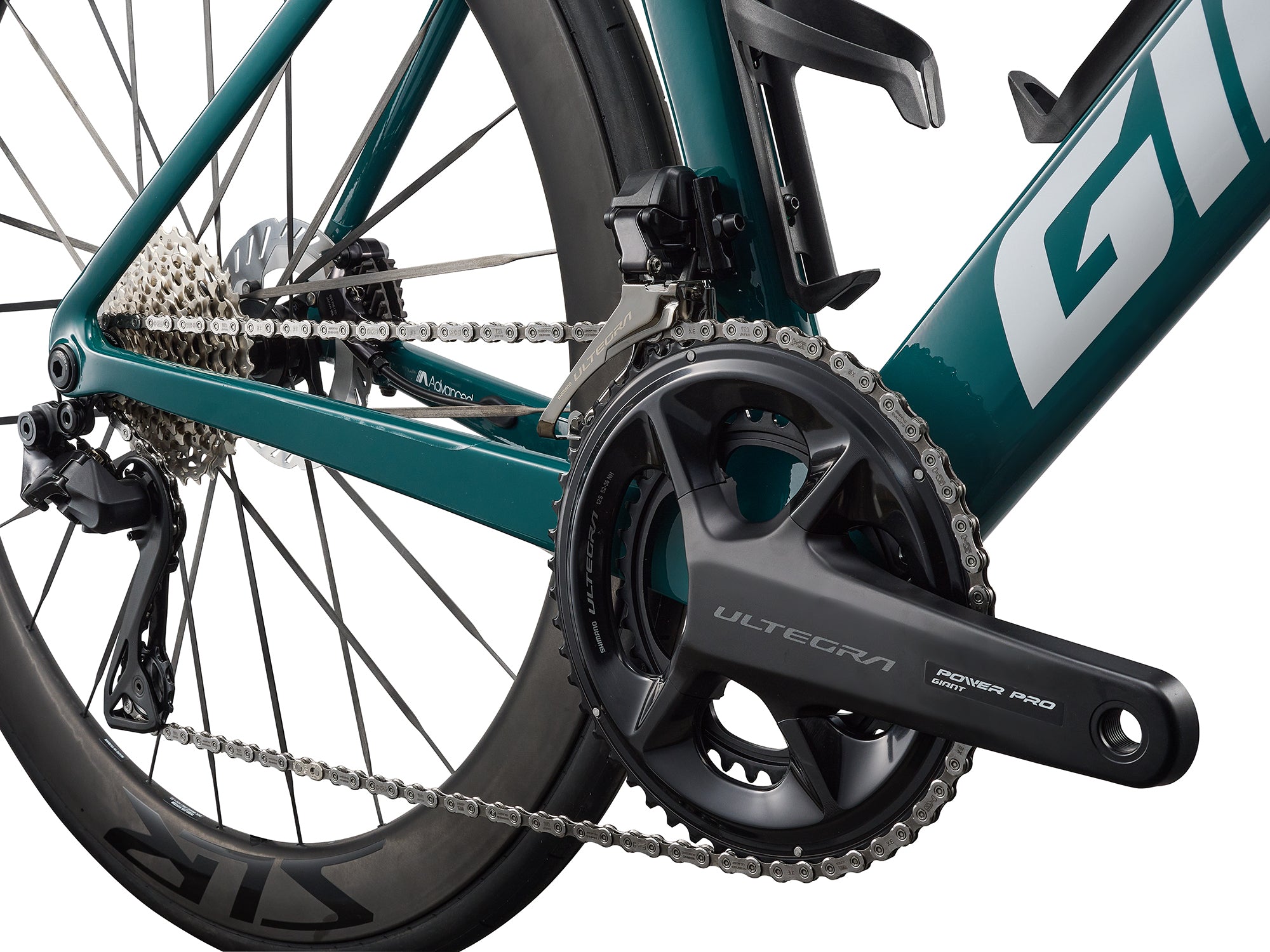

Shimano Ultegra with Giant Power Pro 3 power meter, FC-R8100, 36/52T
XS & S: 165mm
M & ML:170mm
L & XL: 172.5mm
Bottom Bracket

Shimano, press fit 86.5mm
Rims

Giant SLR 0 50
[F] 16 holes, 50mm depth, inner width: 22.4mm, outer width, 30mm
[R] 24 holes, 50mm, inner width: 22.4mm, outer width, 30mm
Hubs

[F] Giant Aero Hub, centerlock, 100x12mm thru-axle
[R] Giant Aero Hub, centerlock, 142x12mm thru-axle, 40T ratchet driver
Spokes

Giant Super Aero Carbon, alloy nipples
Tyres

Cadex Aero, tubeless, 700x28c, folding
Extras

computer mount, water bottle cages, tubeless prepared, 32mm max tyre size
Weight
~7.24kg (Size M, includes bottle cages, computer mount, sealant)

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Propel Advanced/Advanced Pro (4th Gen)

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH (mm)	484	505	528.5	554	576	595
B	SEAT TUBE ANGLE	74.5°	74.0°	73.5°	73.0°	73.0°	72.5°
C	TOP TUBE LENGTH (mm)	520	535	550	565	580	600
D	HEAD TUBE LENGTH (mm)	115	127	145	165	185	200
E	HEAD TUBE ANGLE	71.5°	72.5°	73.0°	73.0°	73.0°	73.0°
F	FORK RAKE (mm)	45	45	45	45	45	45
G	TRAIL (mm)	67.8	61.4	58.3	58.3	58.3	58.3
H	WHEELBASE (mm)	971	973	980	990	1006	1020
I	CHAIN STAY LENGTH (mm)	405	405	405	405	405	405
J	BOTTOM BRACKET DROP (mm)	72	72	69.5	69.5	67	67
K	STACK (mm)	515	530	546	565	582	596
L	REACH (mm)	377	383	388	392	402	412
M	STANDOVER HEIGHT	746	764	787	808	832	847
N	HANDLEBAR WIDTH (mm)	380	380	400	400	420	420
O	STEM LENGTH (mm)	80	90	100	110	110	120
P	CRANK LENGTH (mm)	165	165	170	170	172.5	172.5
Q	WHEEL SIZE	700C	700C	700C	700C	700C	700C
