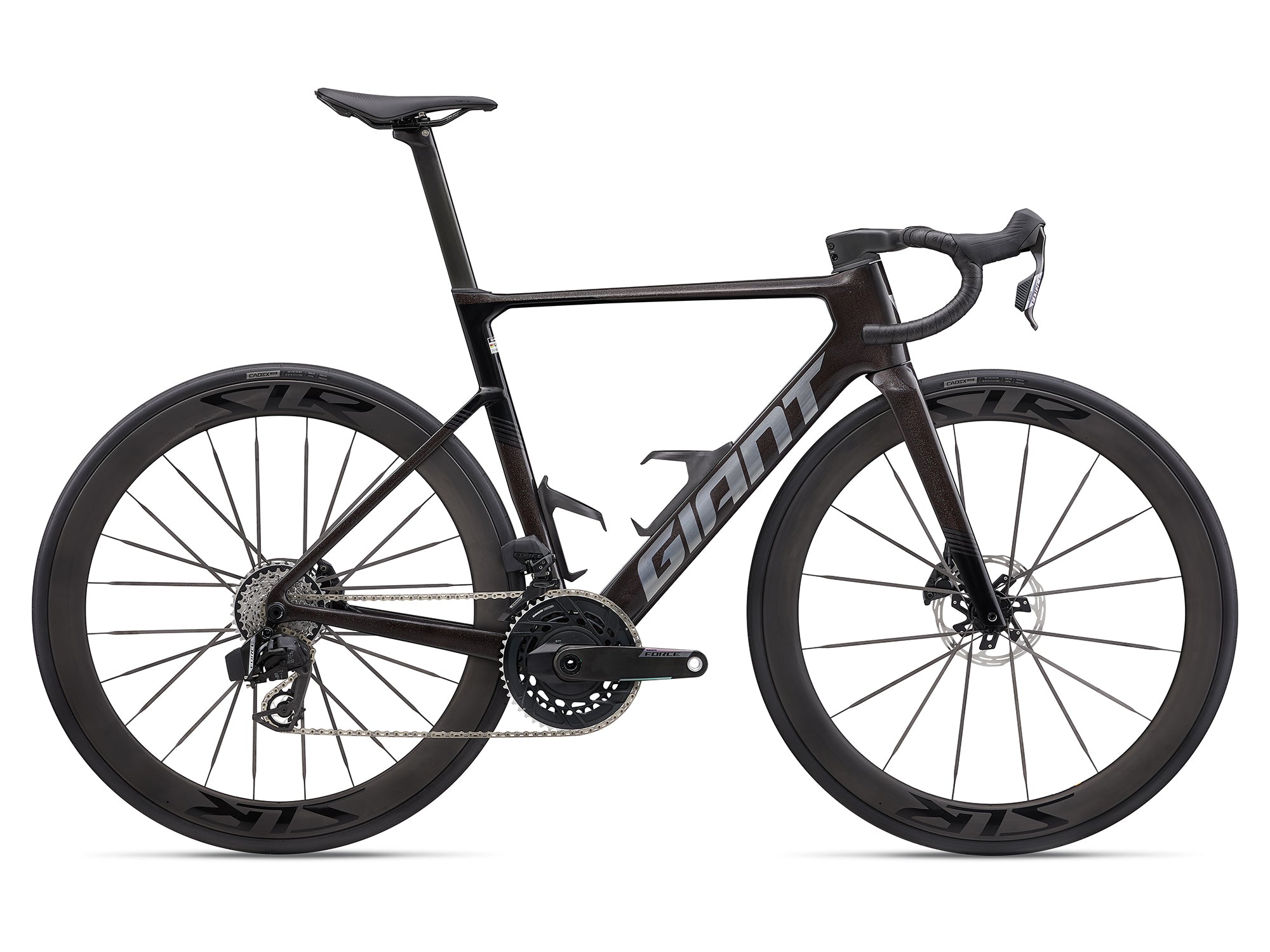

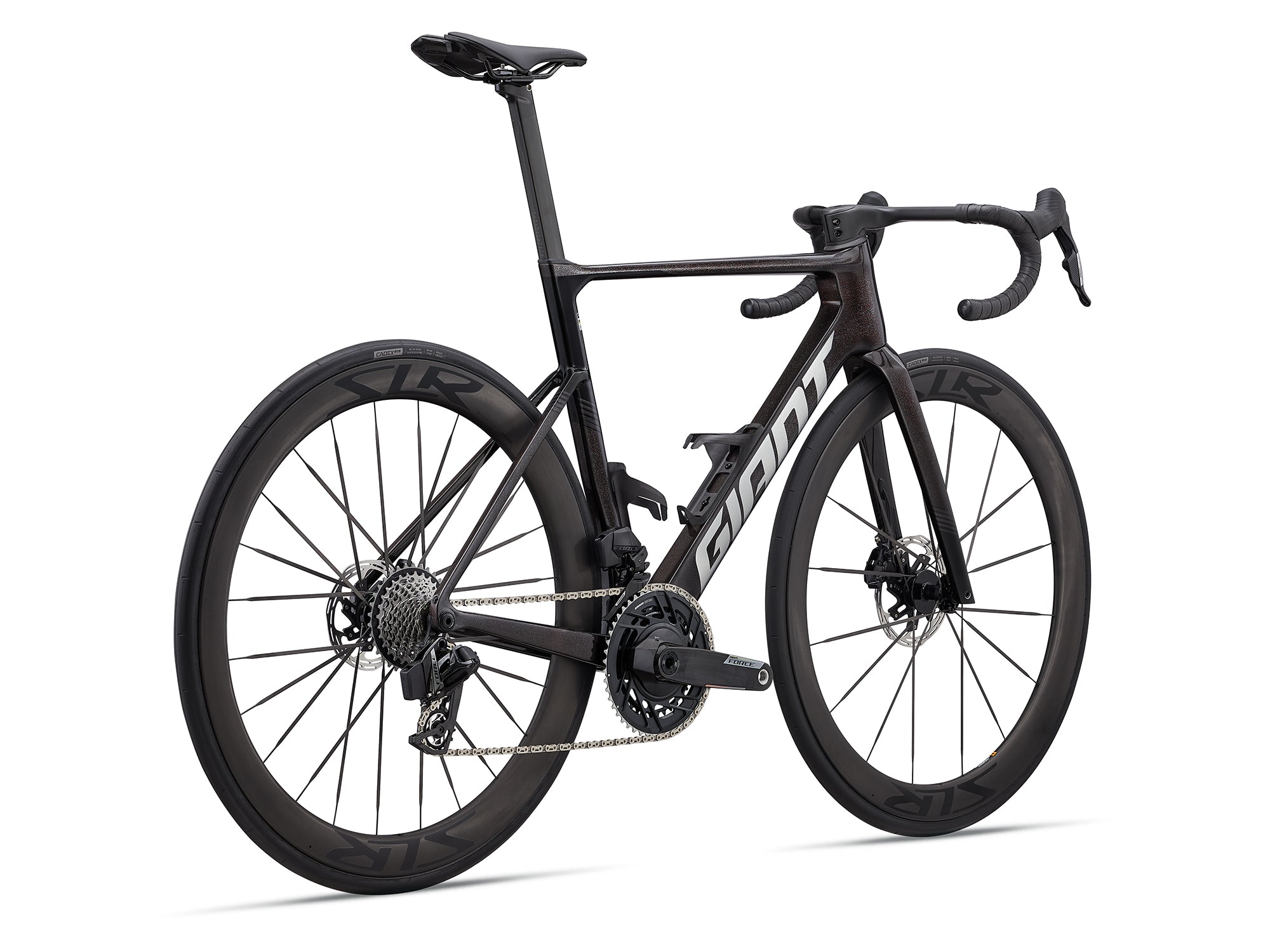

GIANT PROPEL ADVANCED PRO 0 - FORCE AXS (4TH GEN)
Couldn't load pickup availability
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Propel Adv (4th Gen)
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


Propel Advanced/Advanced Pro (4th Gen)
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 484 | 505 | 528.5 | 554 | 576 | 595 |
| B | SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH (mm) | 115 | 127 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 71.5° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL (mm) | 67.8 | 61.4 | 58.3 | 58.3 | 58.3 | 58.3 |
| H | WHEELBASE (mm) | 971 | 973 | 980 | 990 | 1006 | 1020 |
| I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP (mm) | 72 | 72 | 69.5 | 69.5 | 67 | 67 |
| K | STACK (mm) | 515 | 530 | 546 | 565 | 582 | 596 |
| L | REACH (mm) | 377 | 383 | 388 | 392 | 402 | 412 |
| M | STANDOVER HEIGHT | 746 | 764 | 787 | 808 | 832 | 847 |
| N | HANDLEBAR WIDTH (mm) | 380 | 380 | 400 | 400 | 420 | 420 |
| O | STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
Highlight
NOW EVEN FASTER, THIS AERO ROCKETSHIP IS BUILT FOR SPEED WHEN IT MATTERS MOST. THE REENGINEERED FRAMESET IS EVEN MORE ADEPT AT SLICING THROUGH WIND, AND IT’S ALSO LIGHTER THAN THE PREVIOUS GENERATION. THE RESULT? RACE-WINNING EFFICIENCY THAT’S HARD TO BEAT.
KEY PERFORMANCE FACTORS
Integrated aerodynamics
AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes and Contact SLR Aero cockpit produce outstanding overall aero performance.
Easier Adjustability
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Race-winning Efficiency
Advanced-grade composite frameset features high-performance materials and proprietary manufacturing processes. As a result, it’s now lighter than the previous generation for an improved stiffness-to-weight ratio.
SPECIFICATIONS
-
SizesXS, S, M, ML, L, XL
-

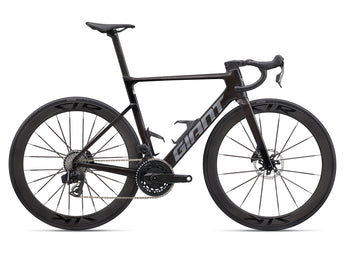

ColorsObsidian Pulse
-

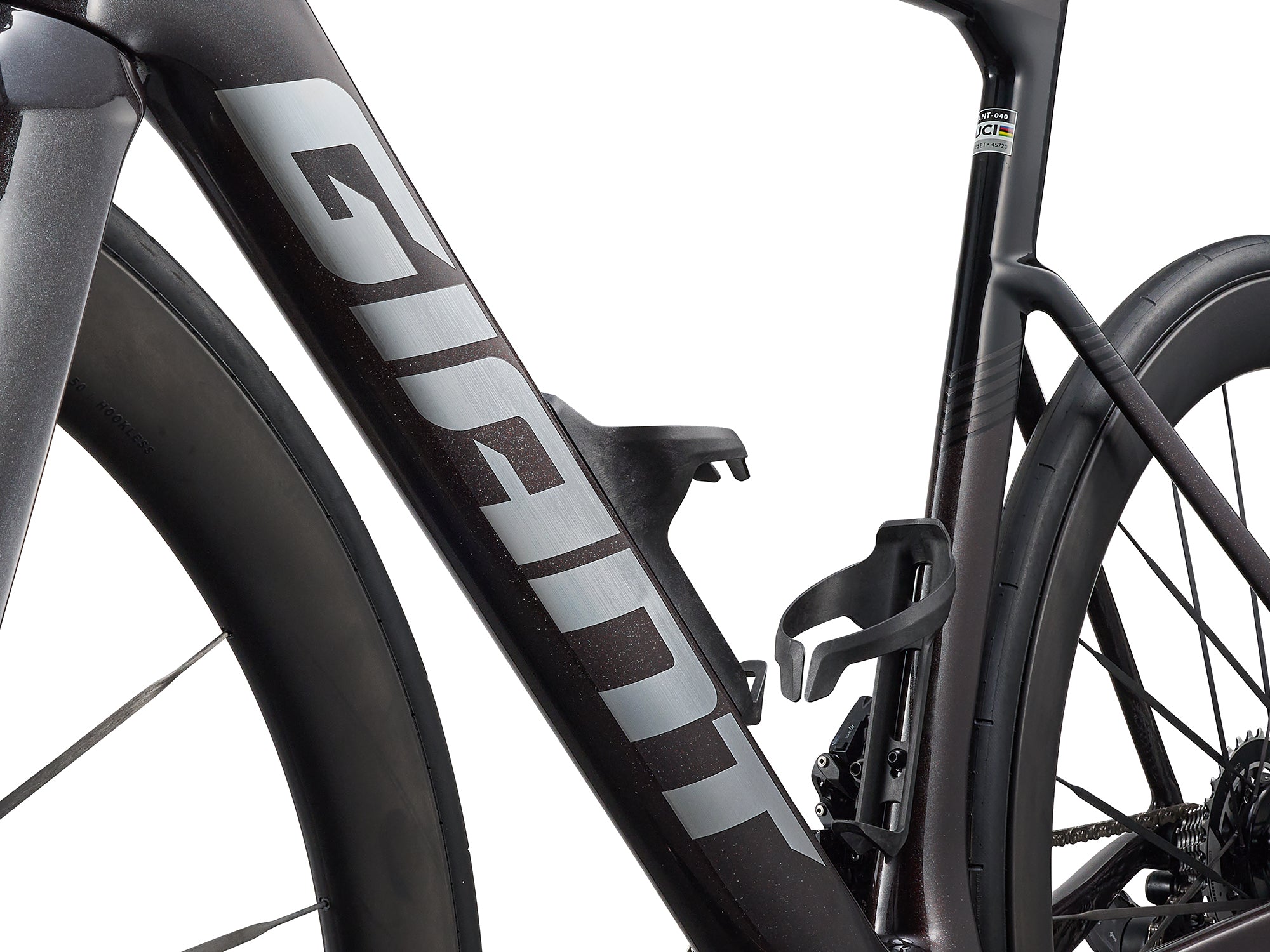

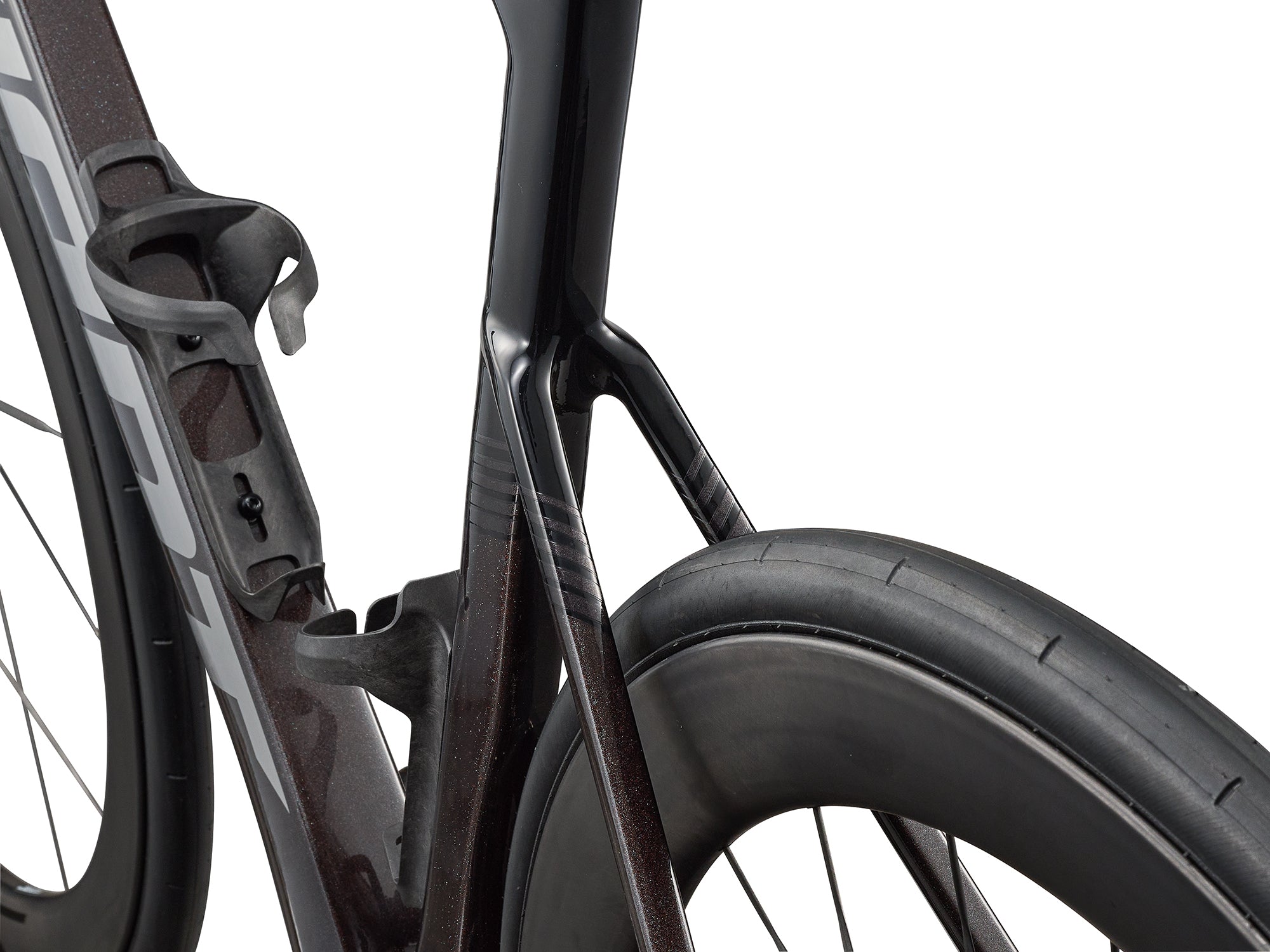

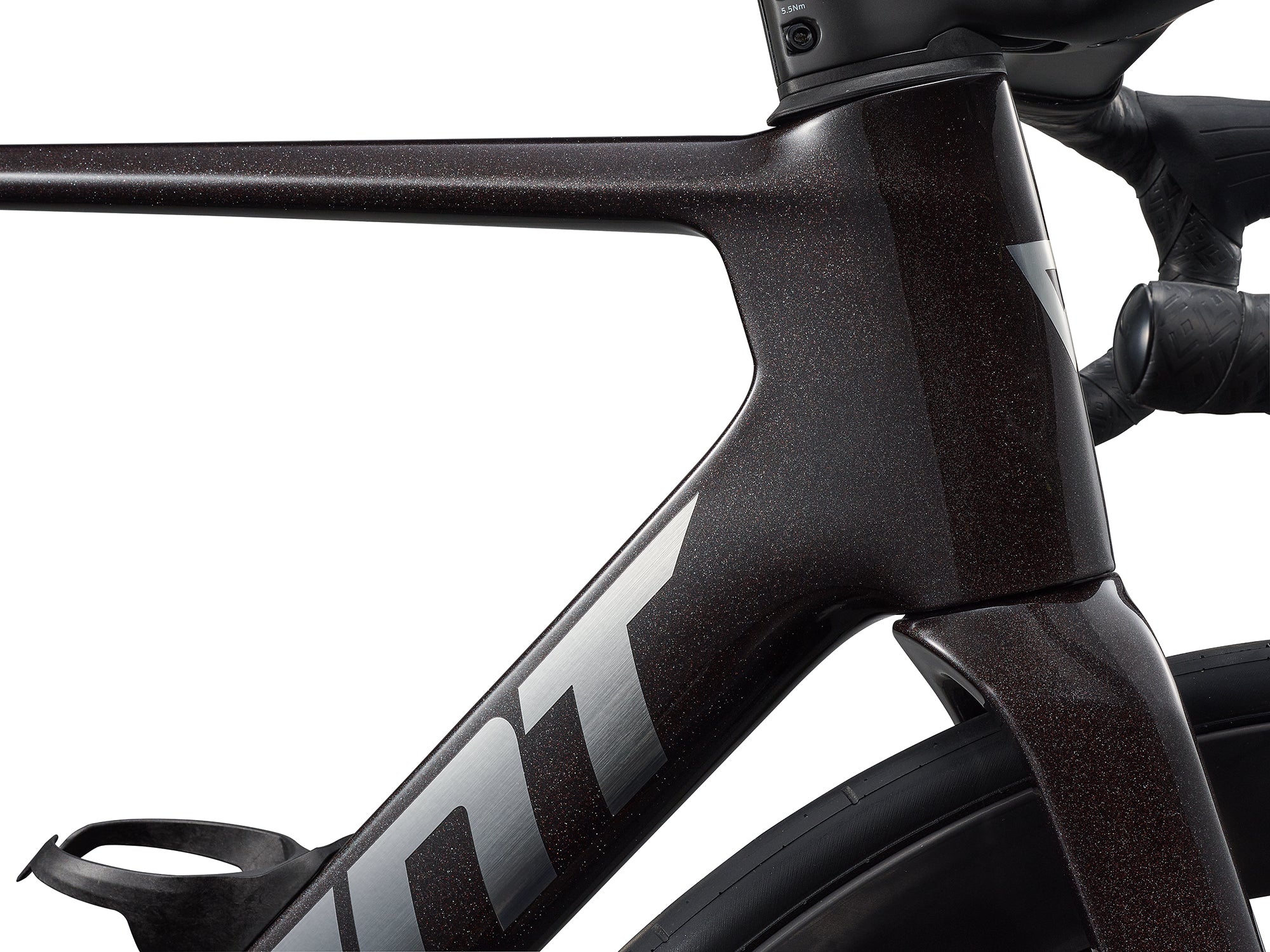

FrameAdvanced-Grade Composite, disc, 142x12mm Pitch 1.0 (UDH)
-

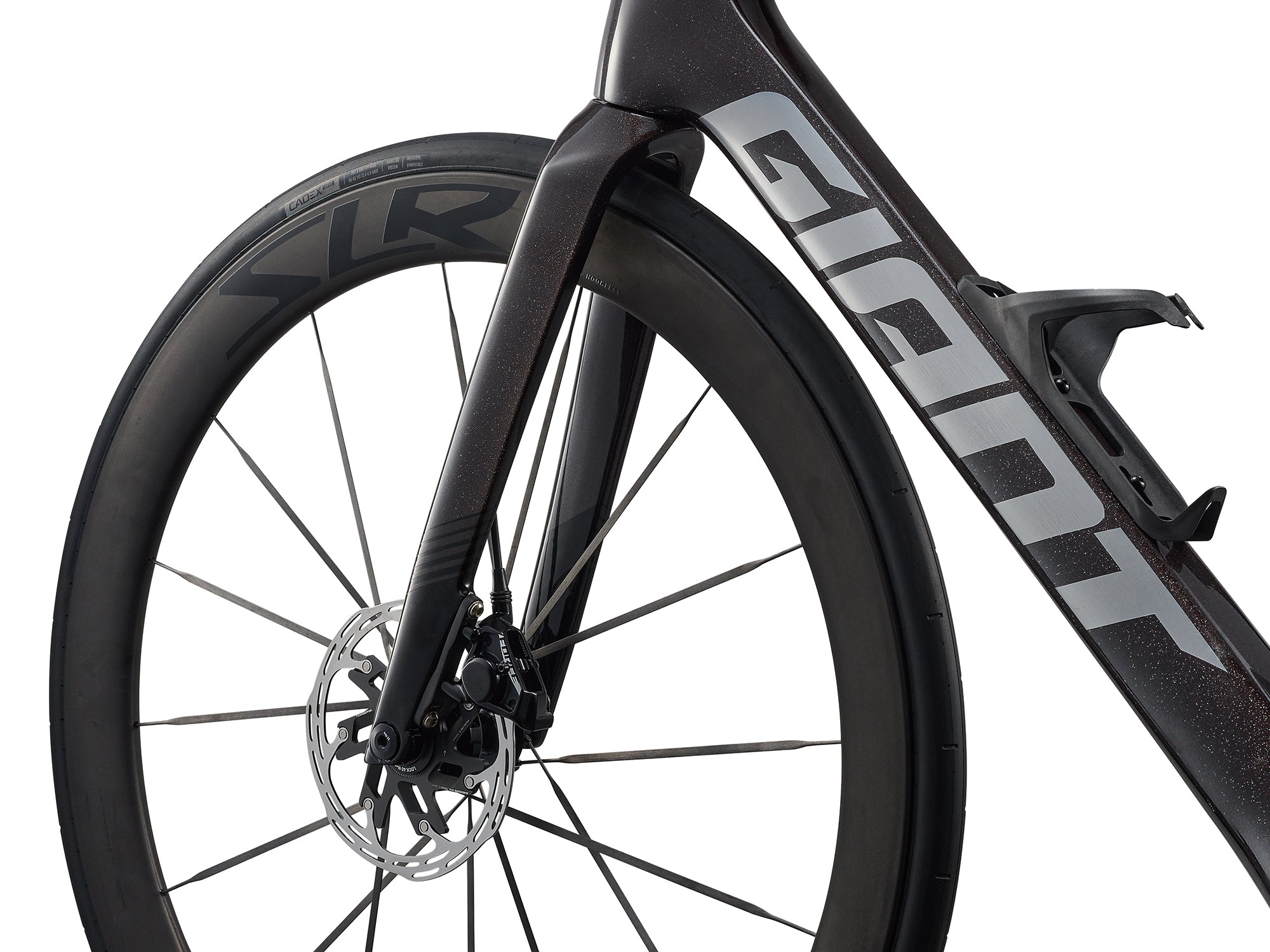

ForkAdvanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc, 100x12mm Pitch 1.5
-
ShockN/A
-

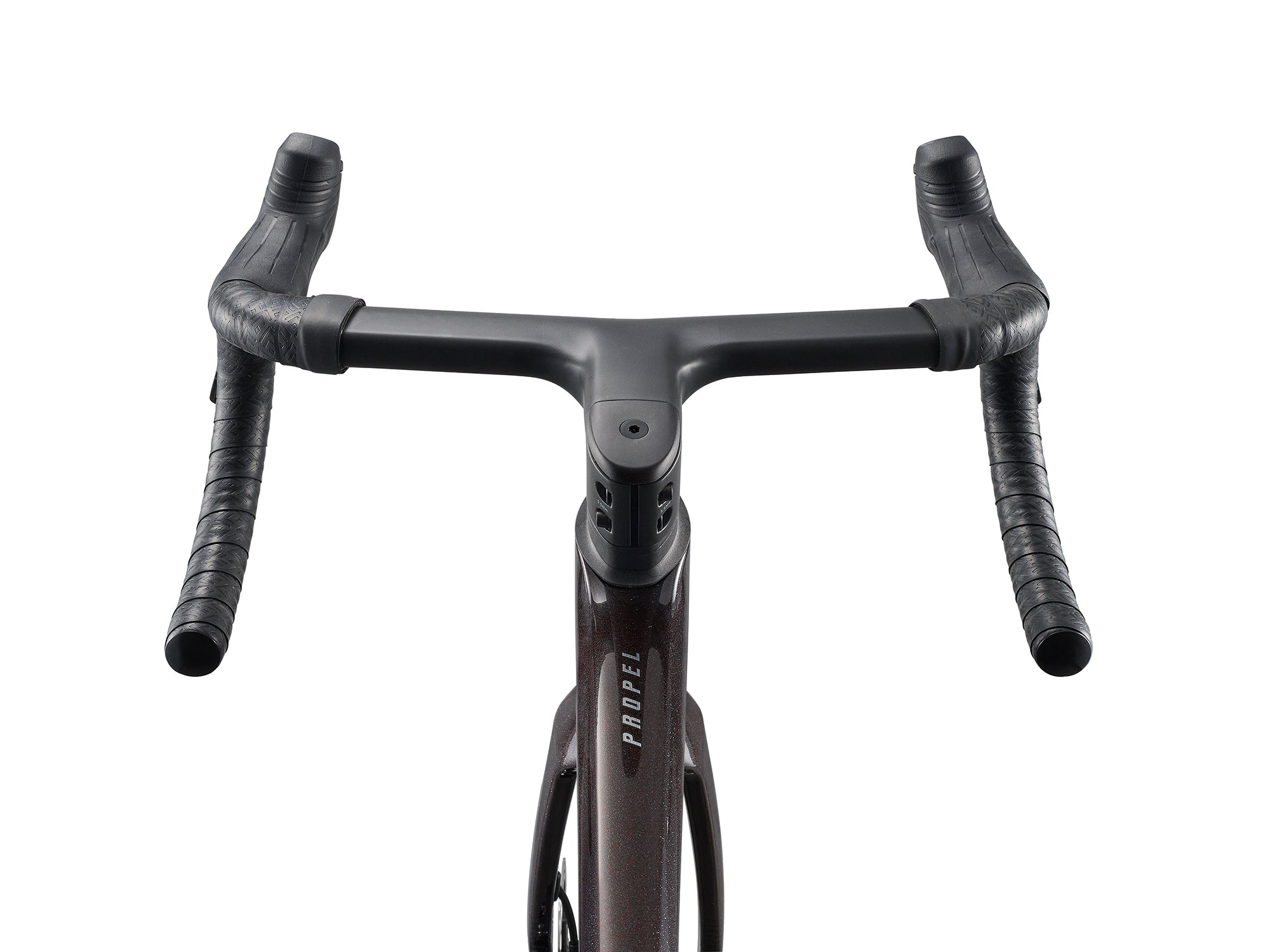

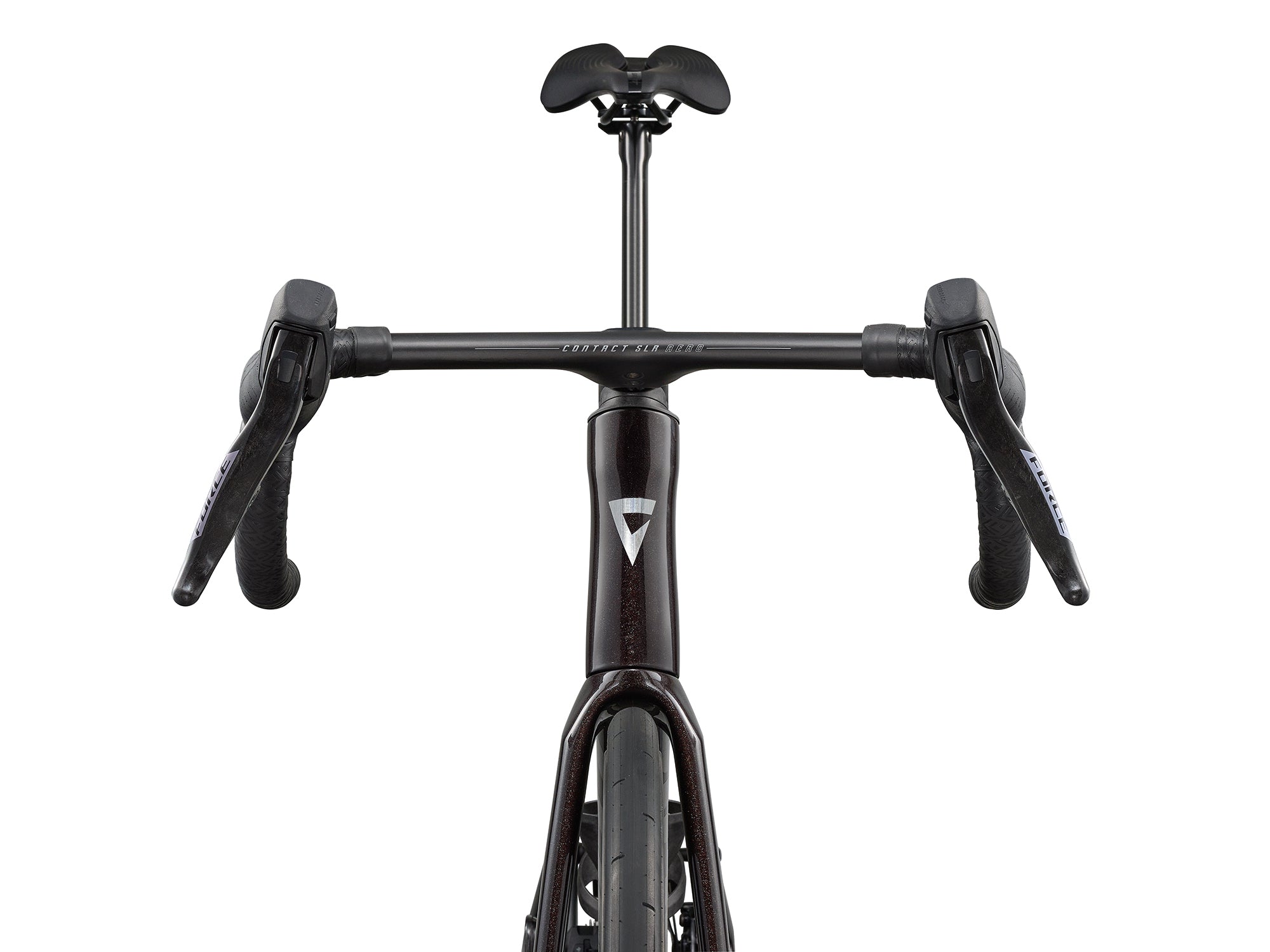

HandlebarGiant Contact SLR 0 Aero Integrated 1-piece
XS & S: 380/360mm
M & ML: 400/370mm
L & XL: 420/390mm
-
GripsStratus Lite 2.0
-
StemGiant Contact SLR 0 Aero Integrated 1-piece
XS:80mm, S:90mm, M:100mm, ML:110mm, L:110mm, XL:120mm -
SeatpostGiant Vector, composite, -5/+15mm offset
-
SaddleGiant Fleet SL, stainless steel rail, 7x7mm
-
PedalsN/A
-
ShiftersSRAM Force AXS E1
-
Front DerailleurSRAM Force AXS E1
-
Rear DerailleurSRAM Force AXS E1
-
BrakesSRAM Force AXS E1, SRAM Paceline rotors, centerlock [F]160mm, [R]140mm
-
Brake LeversSRAM Force AXS E1
-
CassetteSRAM Force AXS E1, 12-speed, 10x33T
-
ChainSRAM Force AXS E1
-

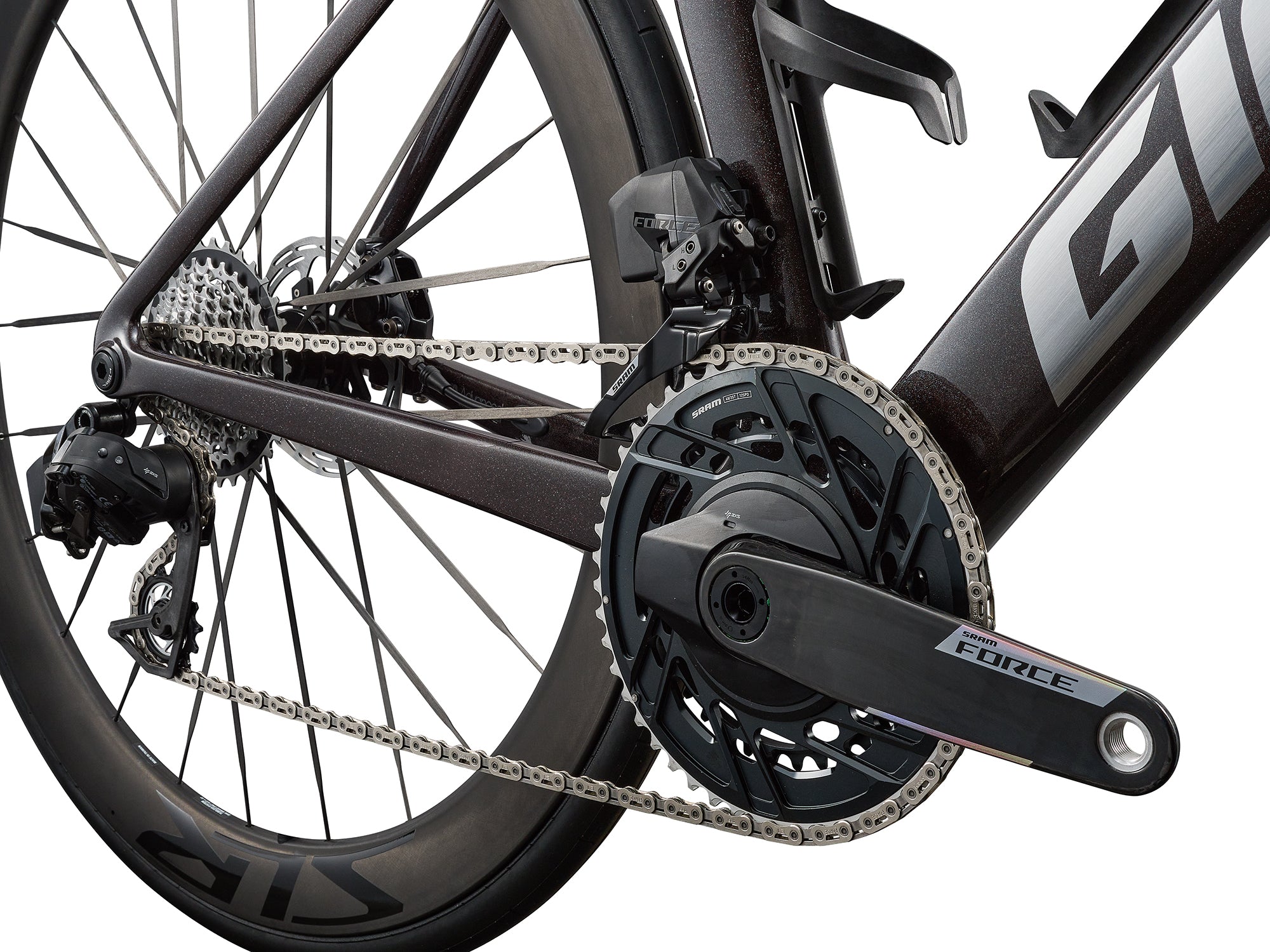

CranksetSRAM Force AXS E1 with Quarq thread mount power meter, 35/48T
XS & S: 165mm
M & ML:170mm
L & XL: 172.5mm -
Bottom BracketSRAM DUB PF86, press fit
-
RimsGiant SLR 0 50
[F] 16 holes, 50mm depth, inner width: 22.4mm, outer width, 30mm
[R] 24 holes, 50mm, inner width: 22.4mm, outer width, 30mm
-
Hubs[F] Giant Aero Hub, centerlock, 100x12mm thru-axle
[R] Giant Aero Hub, centerlock, 142x12mm thru-axle, 40T ratchet driver -
SpokesGiant Aero Carbon, alloy nipples
-
TyresCadex Aero, tubeless, 700x28c, folding
-
Extrascomputer mount, water bottle cages, tubeless prepared, 32mm max tyre size
- Weight
~7.18kg (Size M, includes bottle cages, computer mount, sealant)
*All specifications and prices listed are subject to change without notice.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


Propel Advanced/Advanced Pro (4th Gen)
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 484 | 505 | 528.5 | 554 | 576 | 595 |
| B | SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH (mm) | 115 | 127 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 71.5° | 72.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL (mm) | 67.8 | 61.4 | 58.3 | 58.3 | 58.3 | 58.3 |
| H | WHEELBASE (mm) | 971 | 973 | 980 | 990 | 1006 | 1020 |
| I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP (mm) | 72 | 72 | 69.5 | 69.5 | 67 | 67 |
| K | STACK (mm) | 515 | 530 | 546 | 565 | 582 | 596 |
| L | REACH (mm) | 377 | 383 | 388 | 392 | 402 | 412 |
| M | STANDOVER HEIGHT | 746 | 764 | 787 | 808 | 832 | 847 |
| N | HANDLEBAR WIDTH (mm) | 380 | 380 | 400 | 400 | 420 | 420 |
| O | STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH (mm) | 165 | 165 | 170 | 170 | 172.5 | 172.5 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
