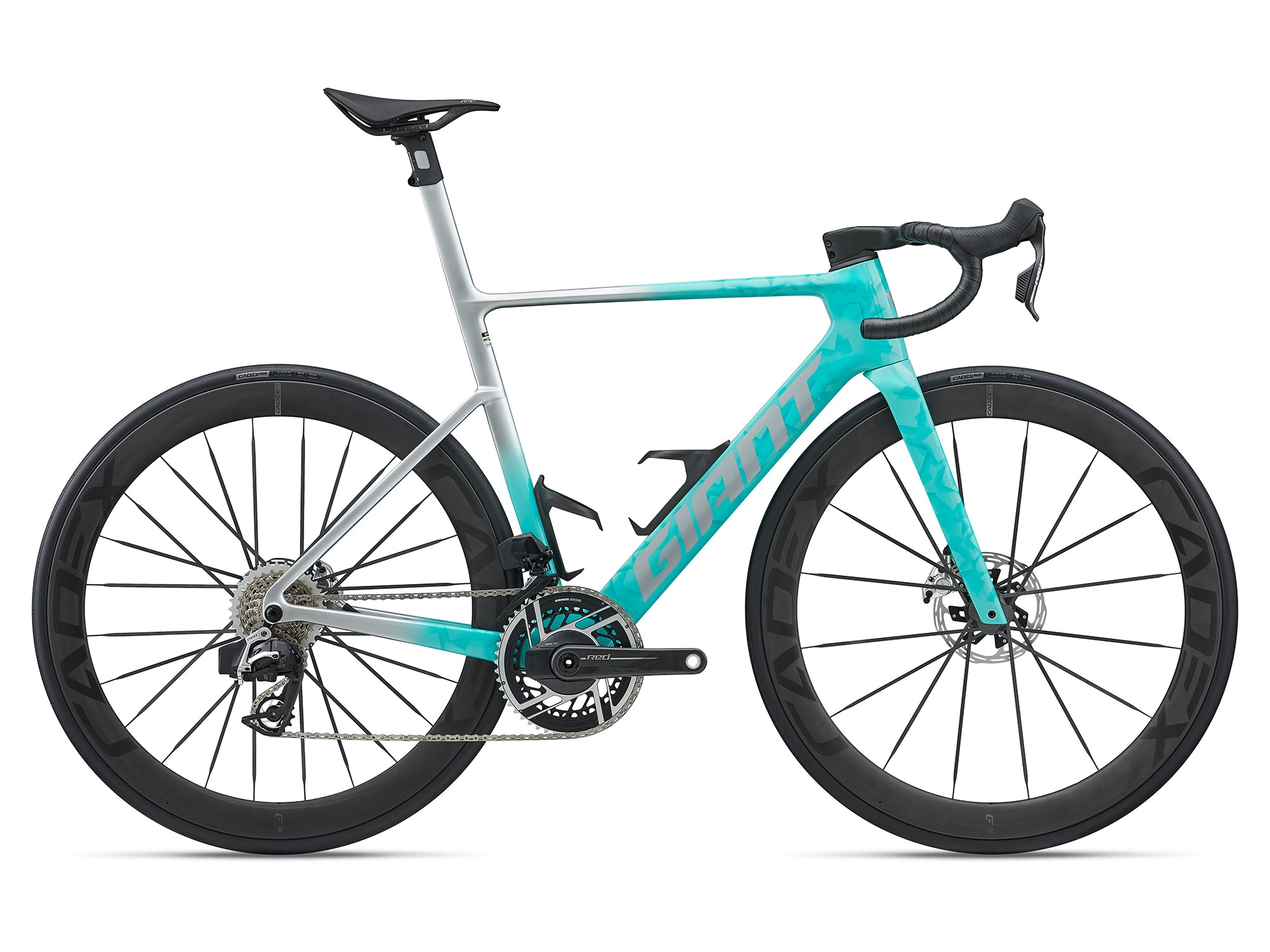

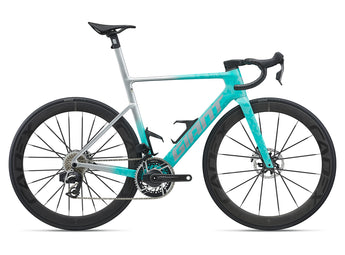

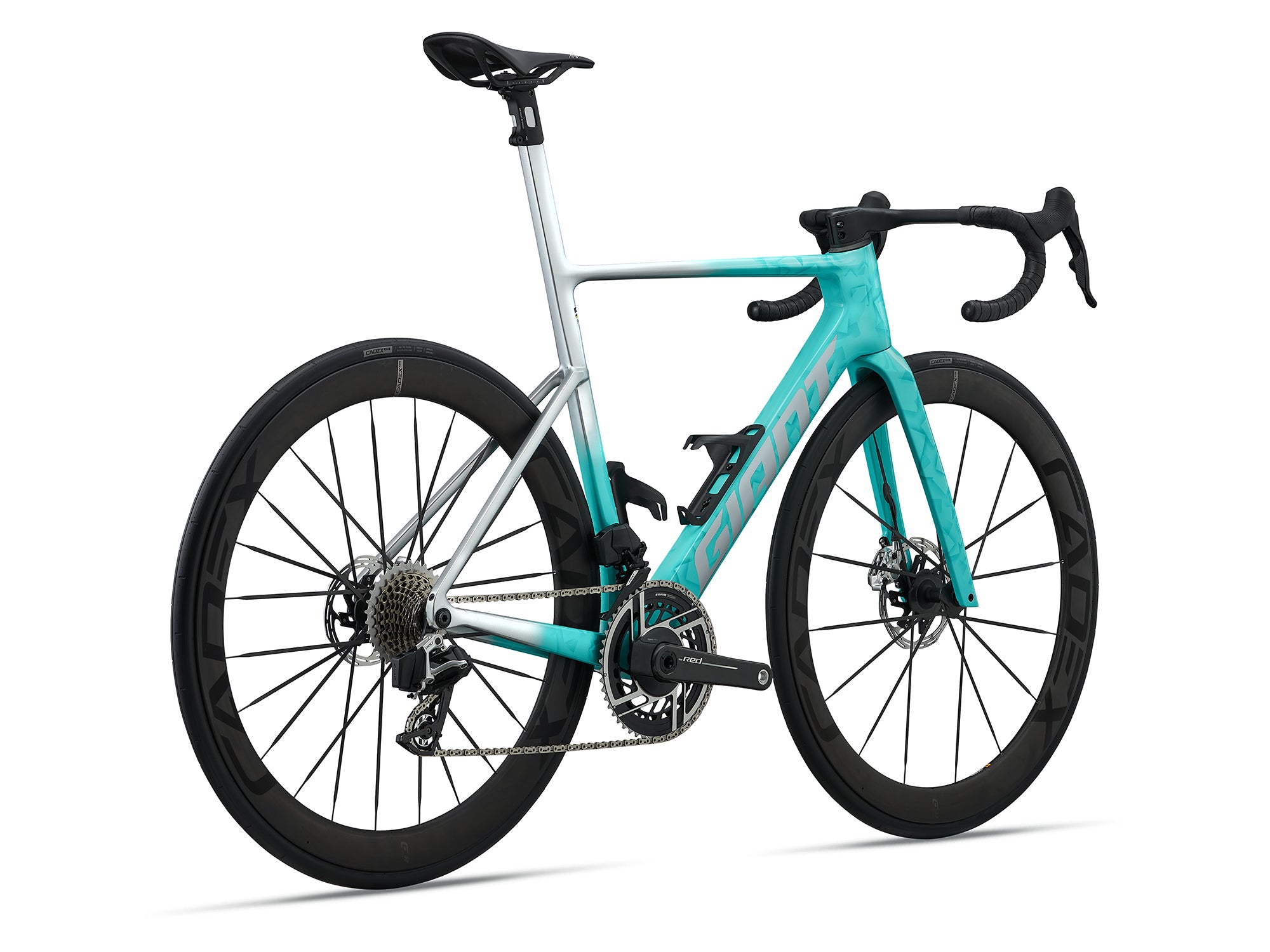

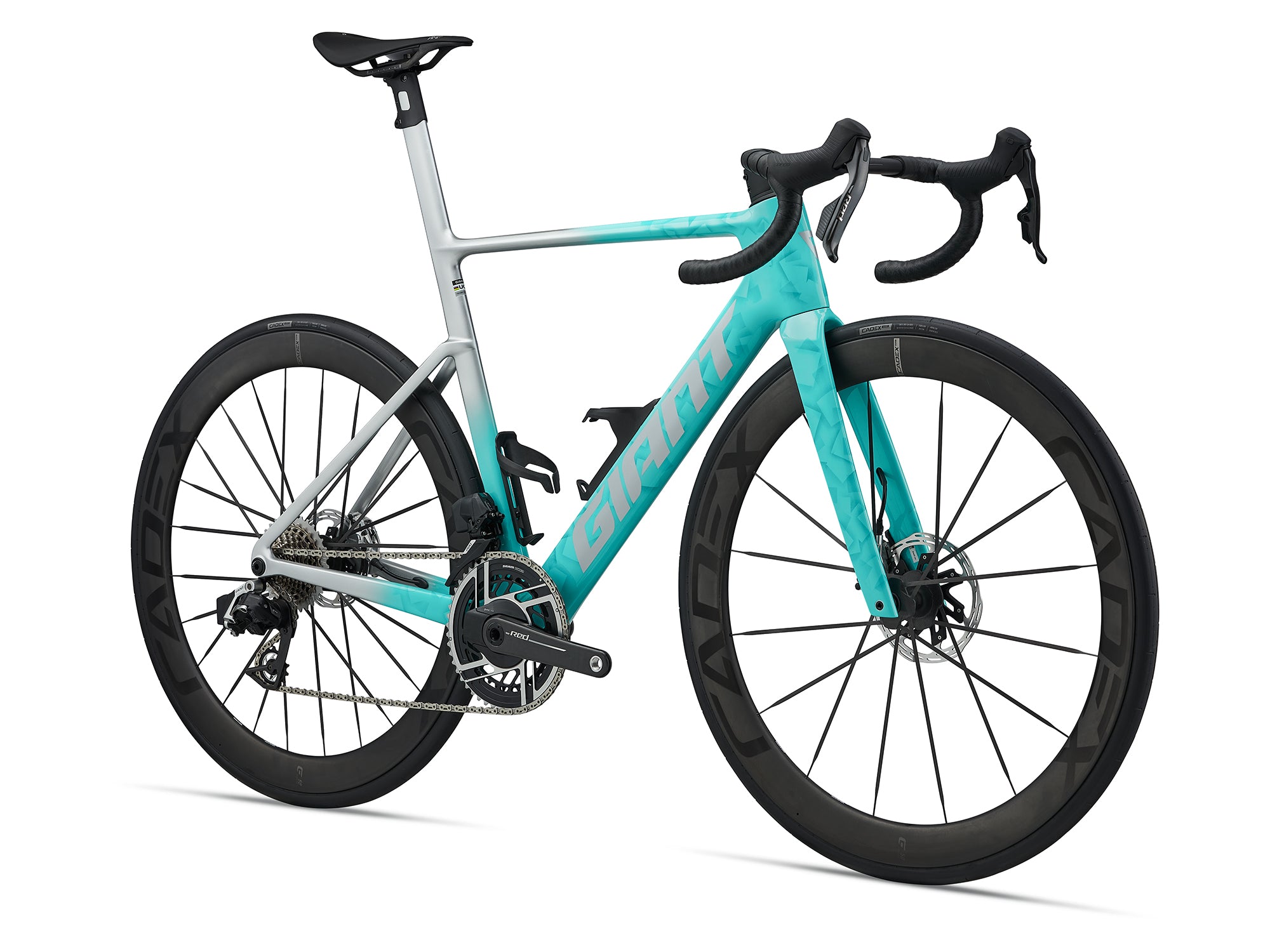

GIANT PROPEL ADVANCED SL 0 - RED AXS (4TH GEN)

$13,000.00
New
Color: Superspeed Blue
Size: S
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color: Superspeed Blue
Size: S

Highlight

From breakaways to the final sprint. On flat roads, climbs or descents. The reengineered Propel Advanced SL cuts through wind and maximizes watts, optimizing your energy through every dimension of speed: top-end speed, instant speed and sustained speed.

KEY PERFORMANCE FACTORS

Instant Speed

In the moments when explosive speed matters most—launching an attack, chasing a break, or sprinting for the finish line—the new Propel Advanced SL is quicker and more dynamic than ever. The whole system sheds 355g from the previous generation and is also more efficient with 14.2% more torsional stiffness and 14.8% greater pedaling stiffness—so you feel instantaneous reaction when you make your move.

Sustained Speed

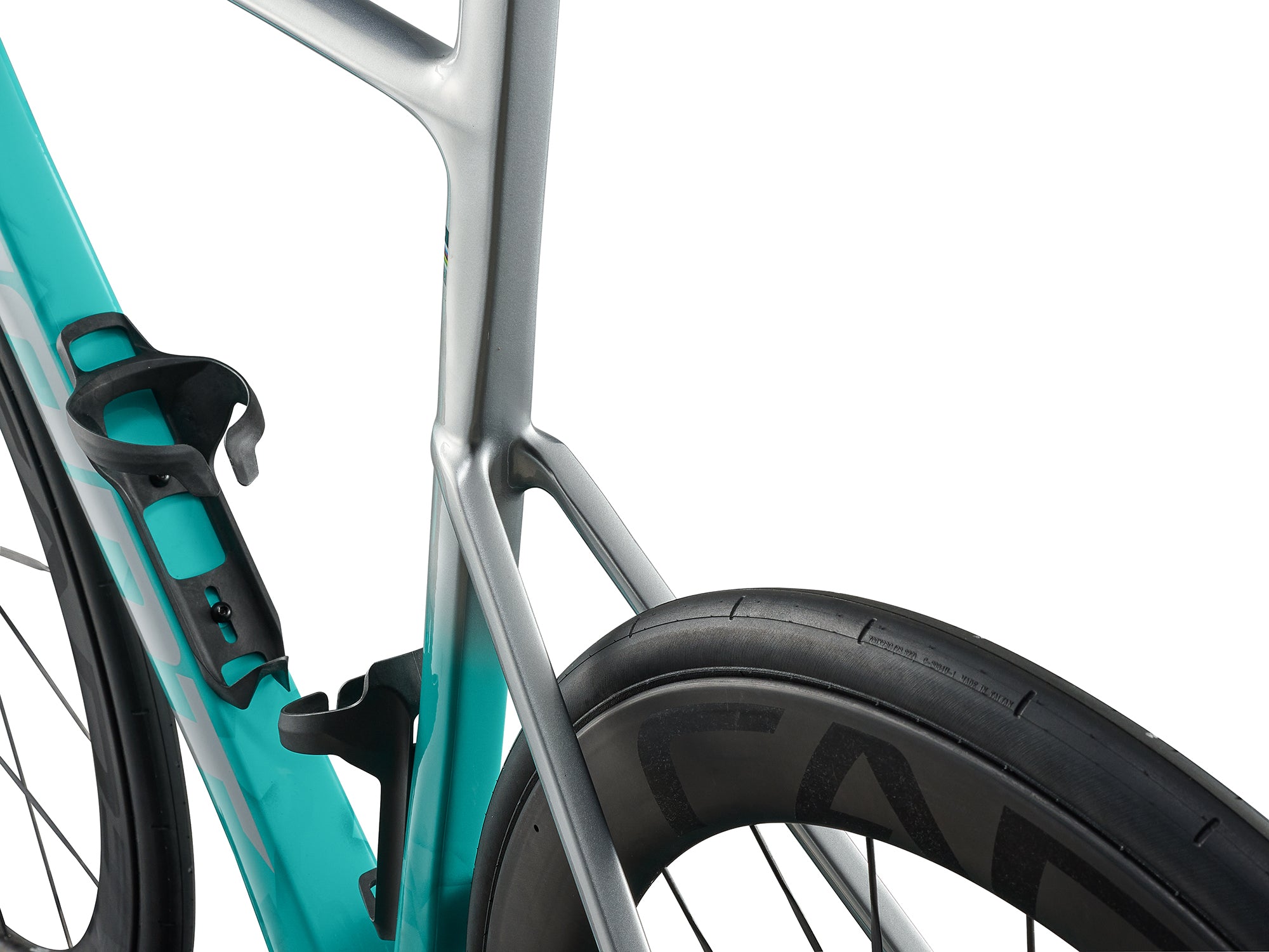

Engineered for full-bike compliance, the new Propel Advanced SL delivers a significantly smoother ride when you’re rolling in the group or piling up training miles. The Vector integrated seatpost has 25% greater compliance compared to the previous generation. The fork and integrated cockpit absorb bumps and vibrations up front with 15% added compliance. And additional tire clearance allows for high-volume tires up to 32mm, further smoothing out the ride to help you maintain higher speeds with less fatigue.

Top-end Speed

The frameset, cockpit, wheels and tires form a unified system that lowers total resistance when you’re pushing high speeds in the wind—whether you’re on a solo break, taking pulls at the front, or powering away on a climb. The AeroSystem frame and integrated cockpit minimize drag, while the new CADEX Max 50 WheelSystem and Aero tires reduce rolling resistance. Calculating linear aero drag, wheel rotating drag and tire rolling resistance, it all adds up to a total energy savings of 18.4 watts.

SPECIFICATIONS
  • Sizes
    XS, S, M, ML, L, XL
  • Colors
    Superspeed Blue
  • Frame
    Advanced SL-Grade Composite, disc, 142x12mm Pitch 1.0 (UDH)

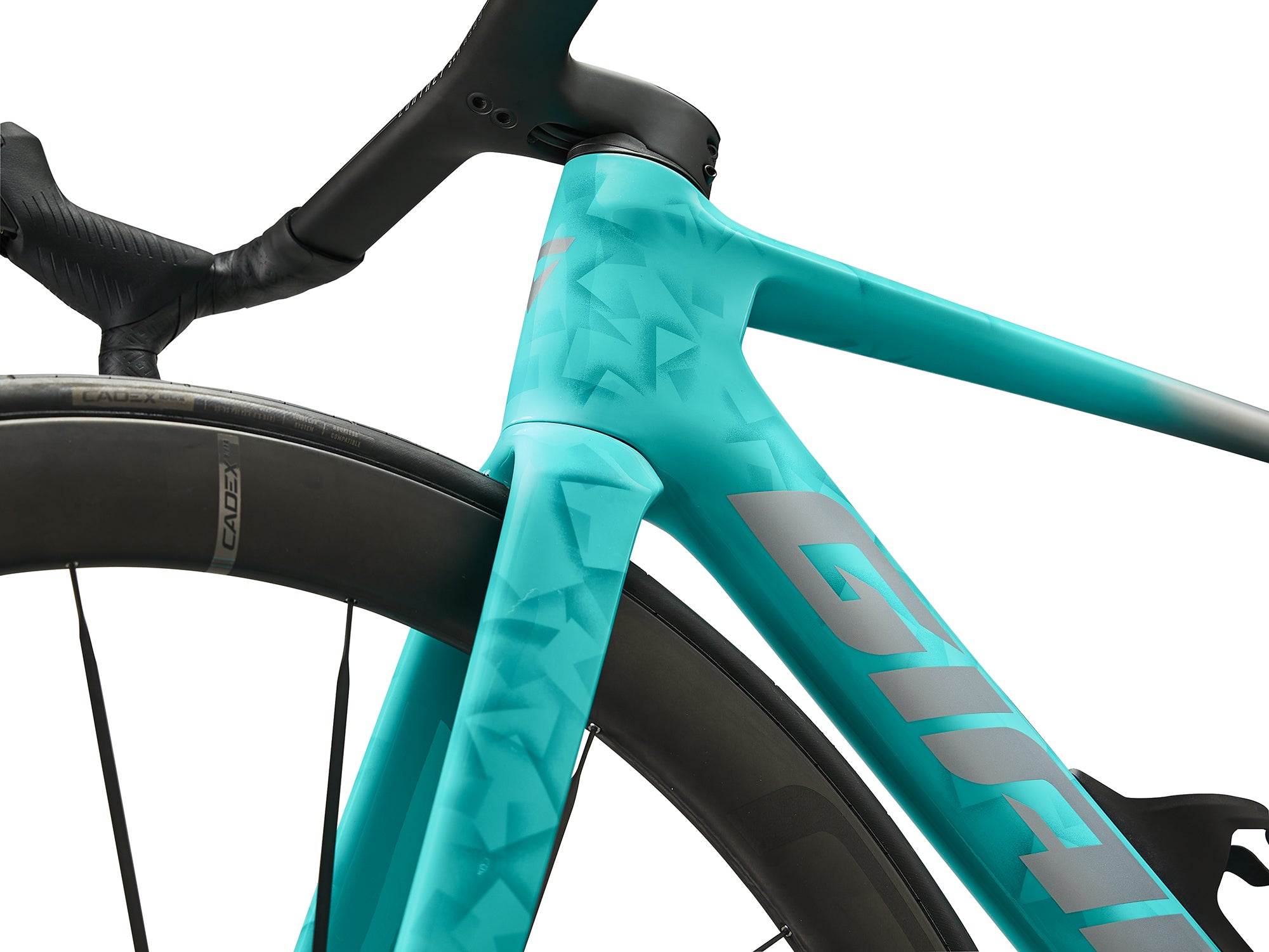

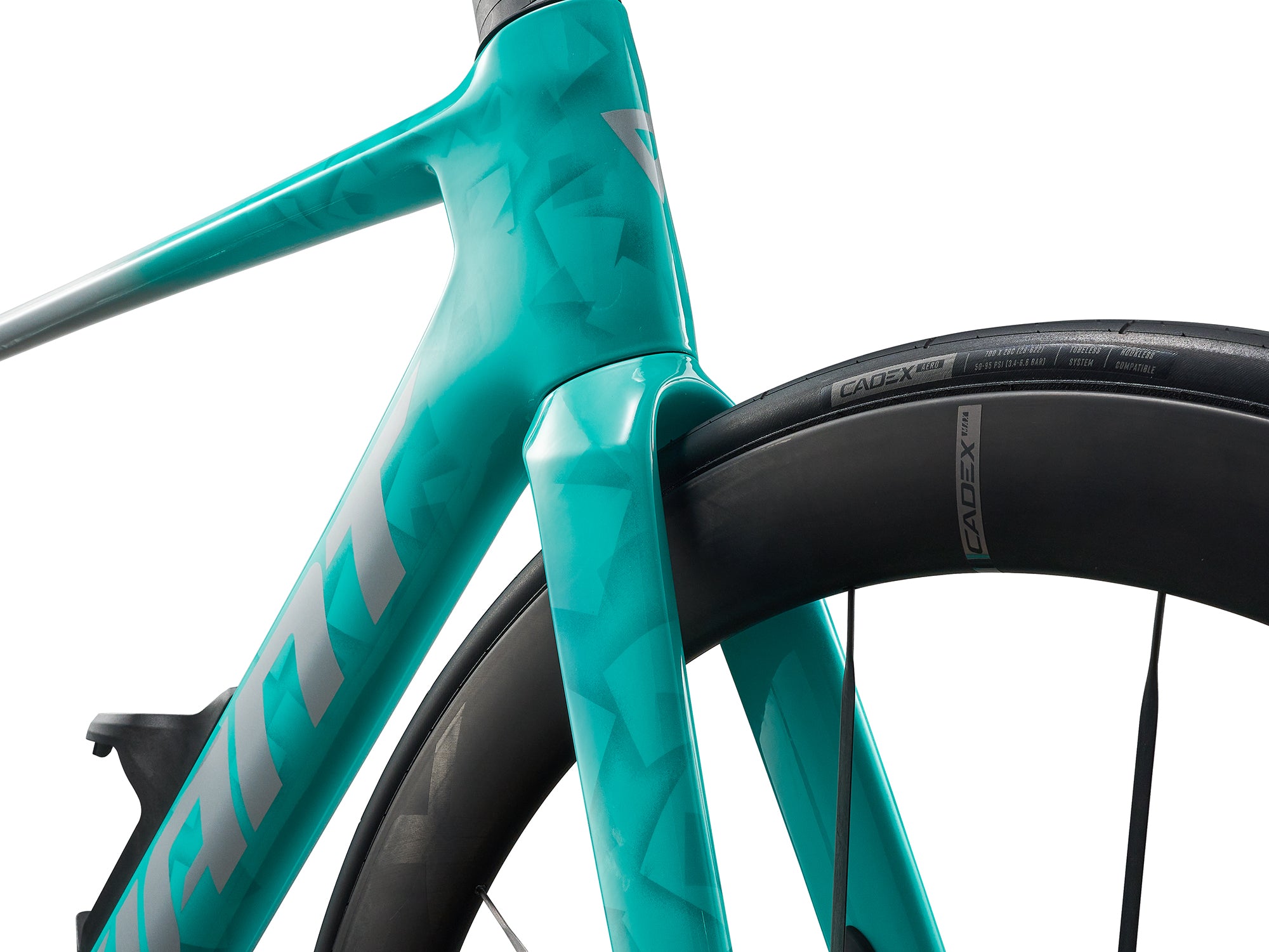

  • Fork

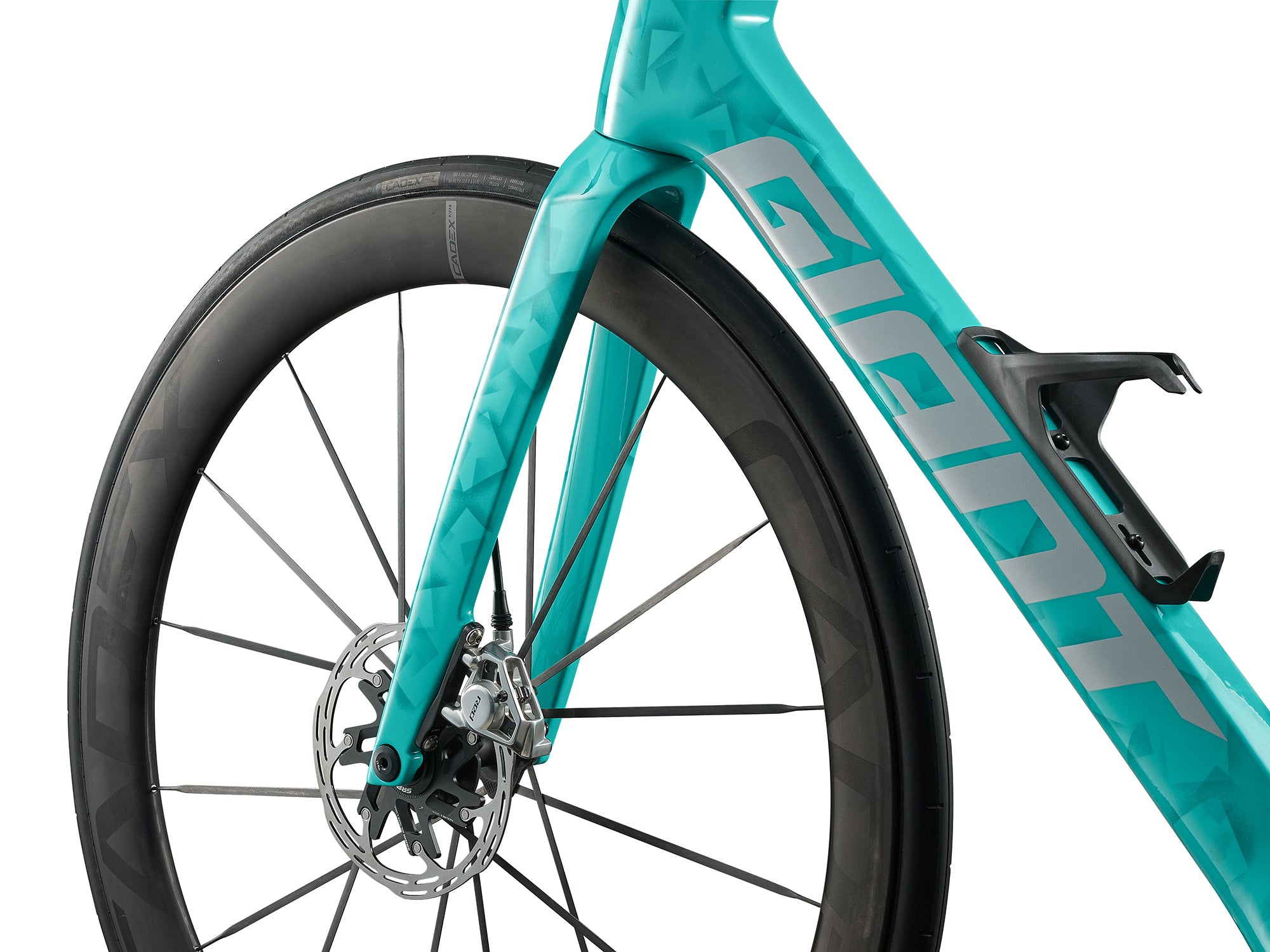

    Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc, 100x12mm Pitch 1.5
  • Shock
    N/A

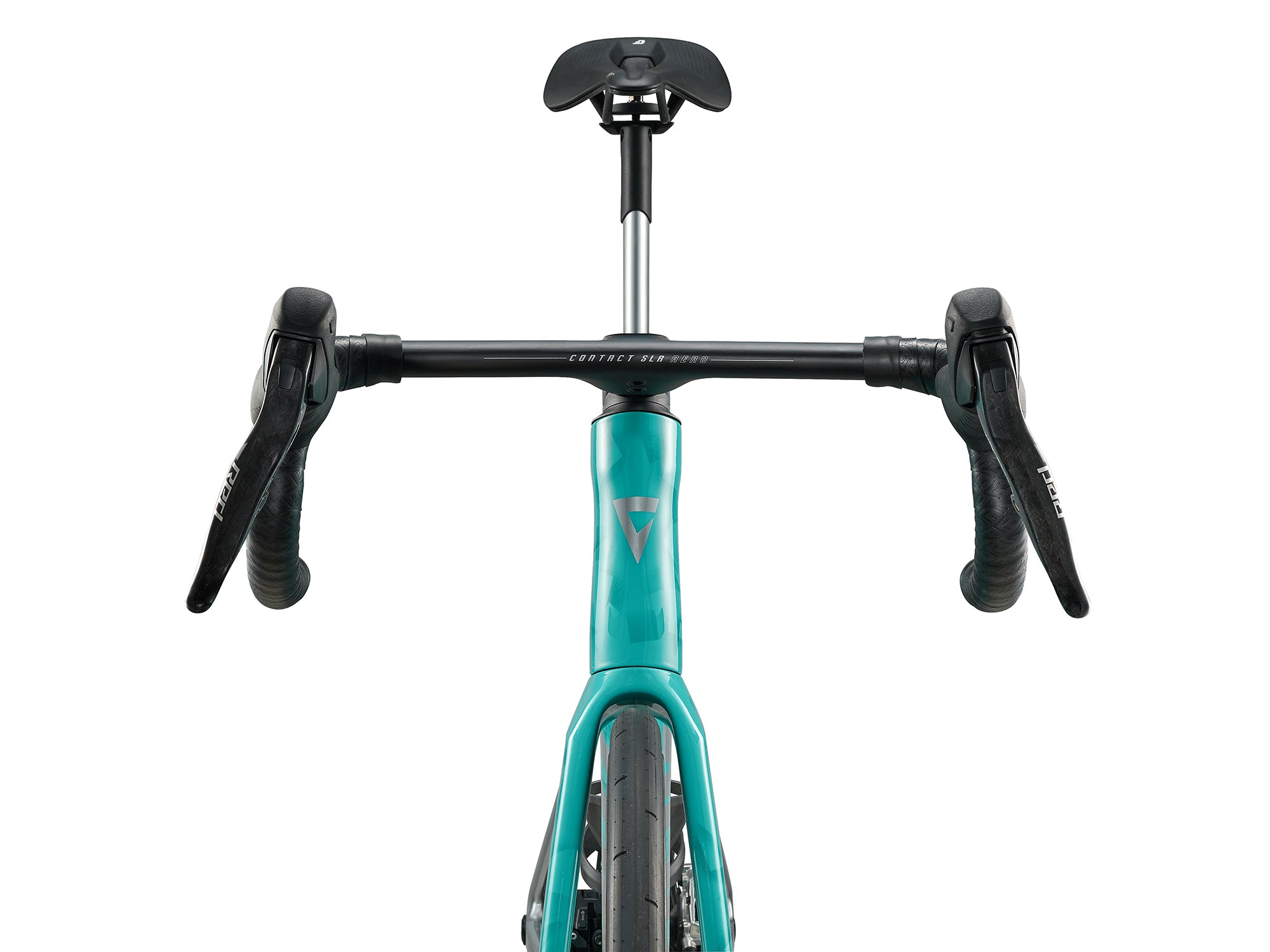

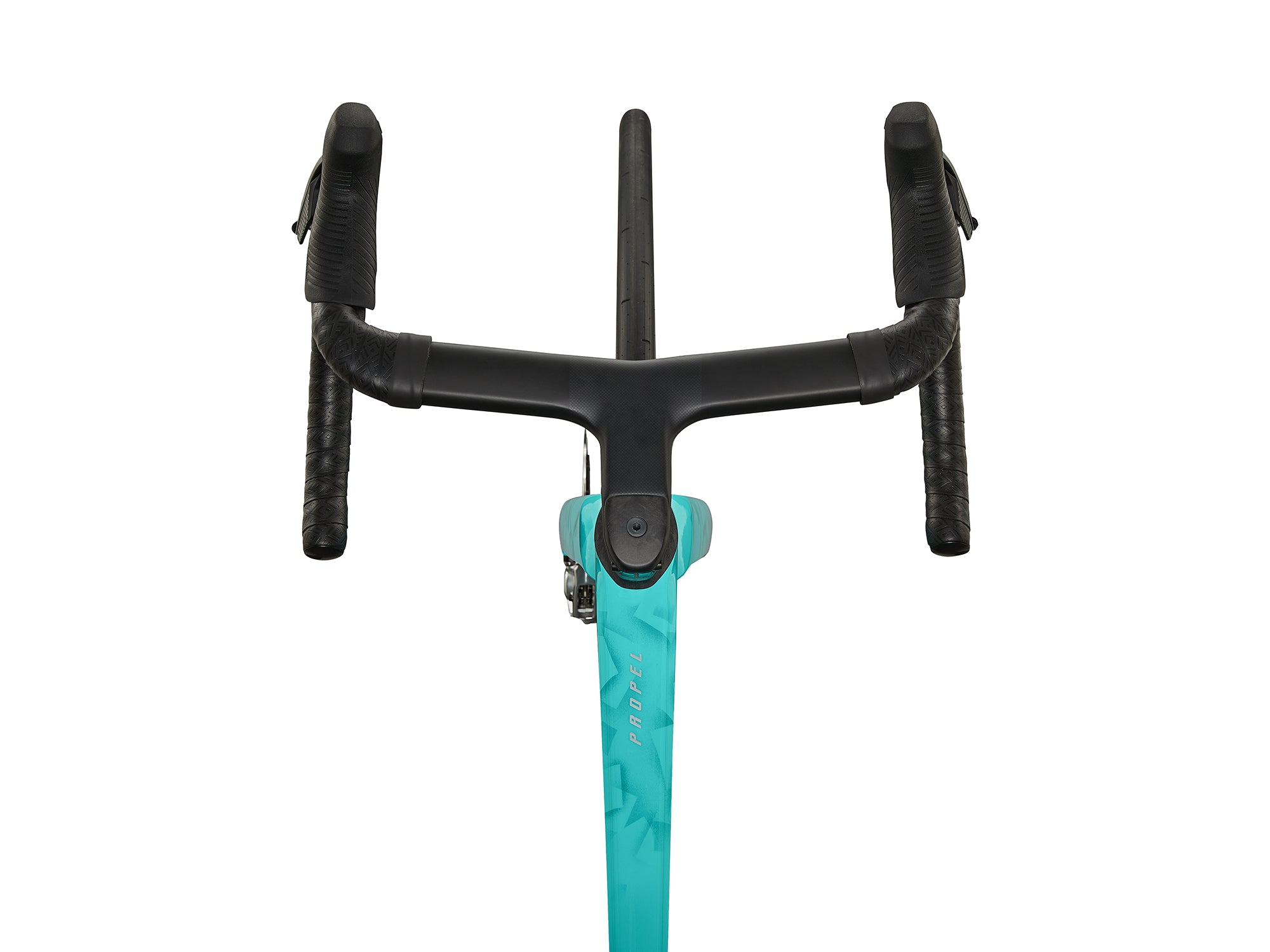

  • Handlebar

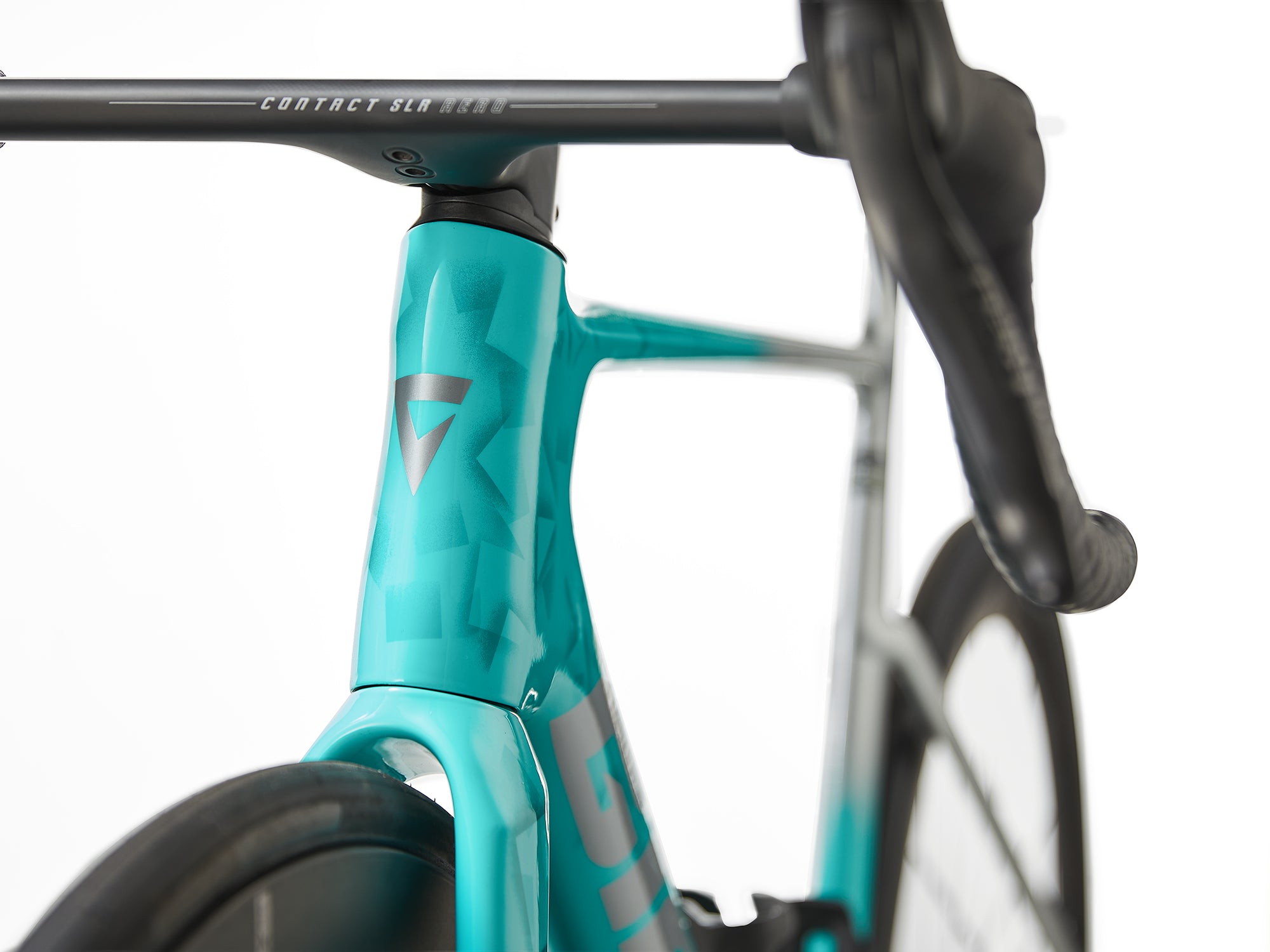

    Giant Contact SLR 0 Aero Integrated 1-piece
    XS & S: 380/360mm
    M & ML: 400/370mm
    L & XL: 420/390mm
  • Grips
    Stratus Lite 2.0

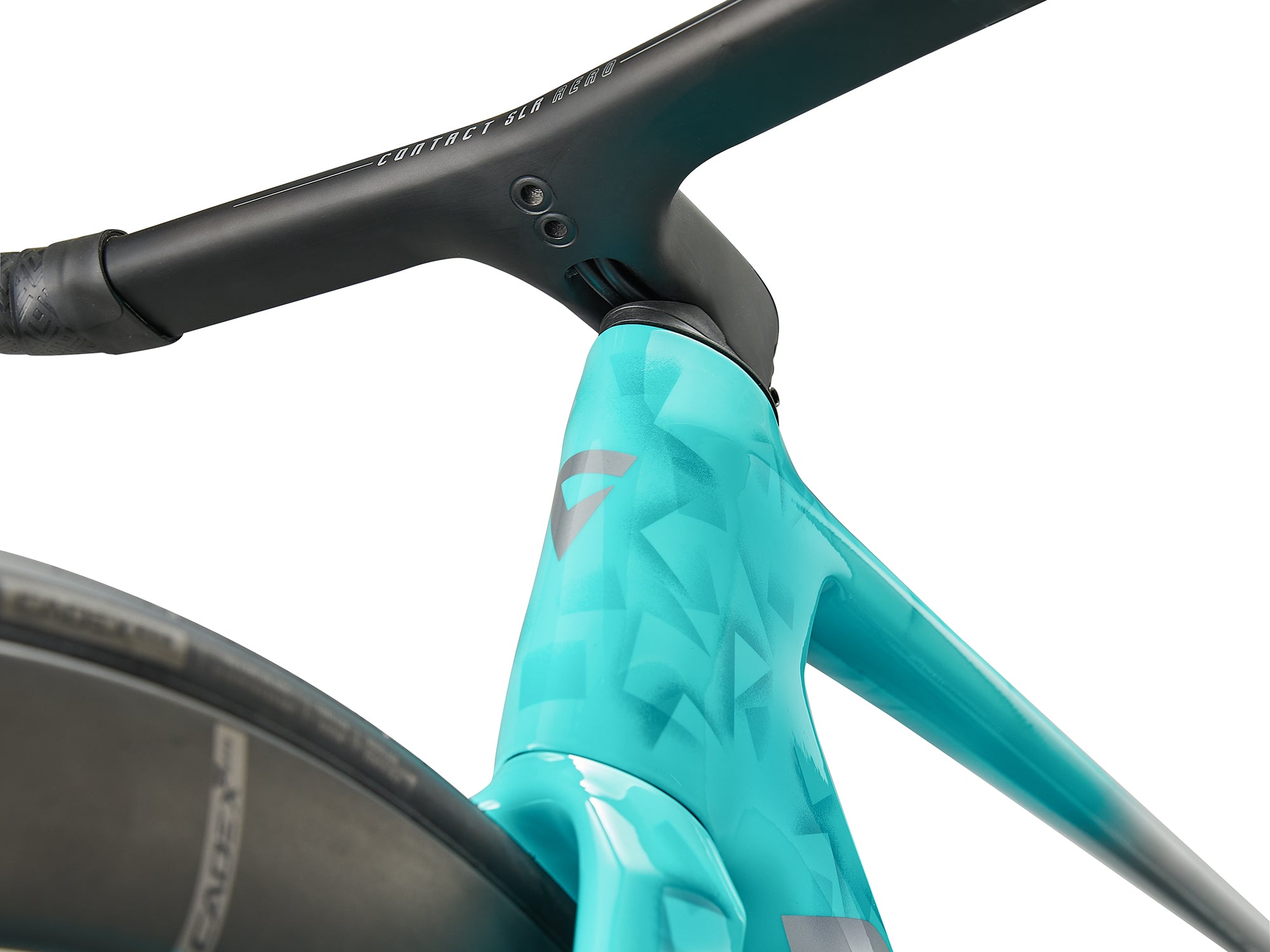

  • Stem
    Giant Contact SLR 0 Aero Integrated 1-piece
    XS:80mm, S:90mm, M:100mm, ML:110mm, L:110mm, XL:120mm

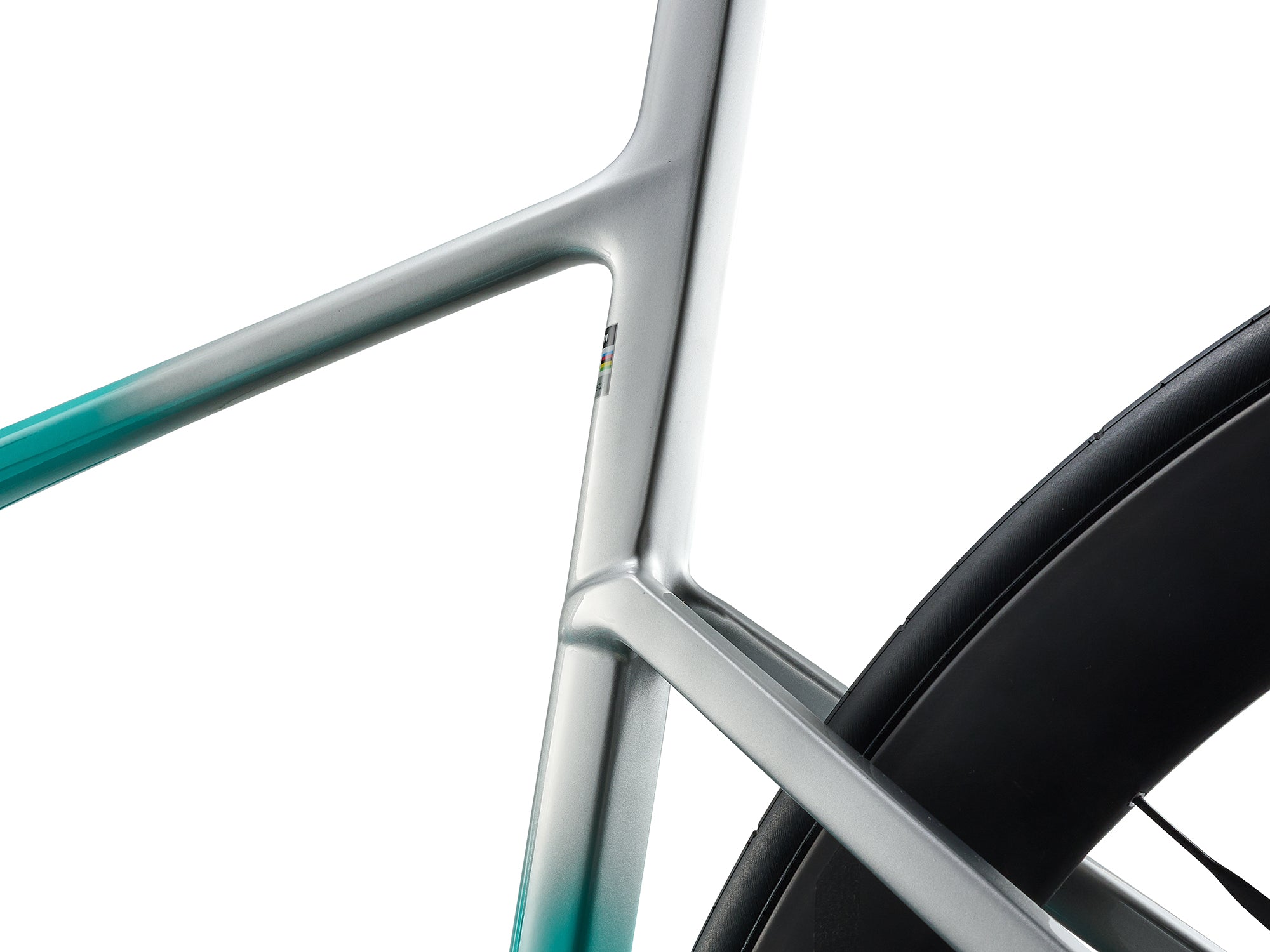

  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Saddle

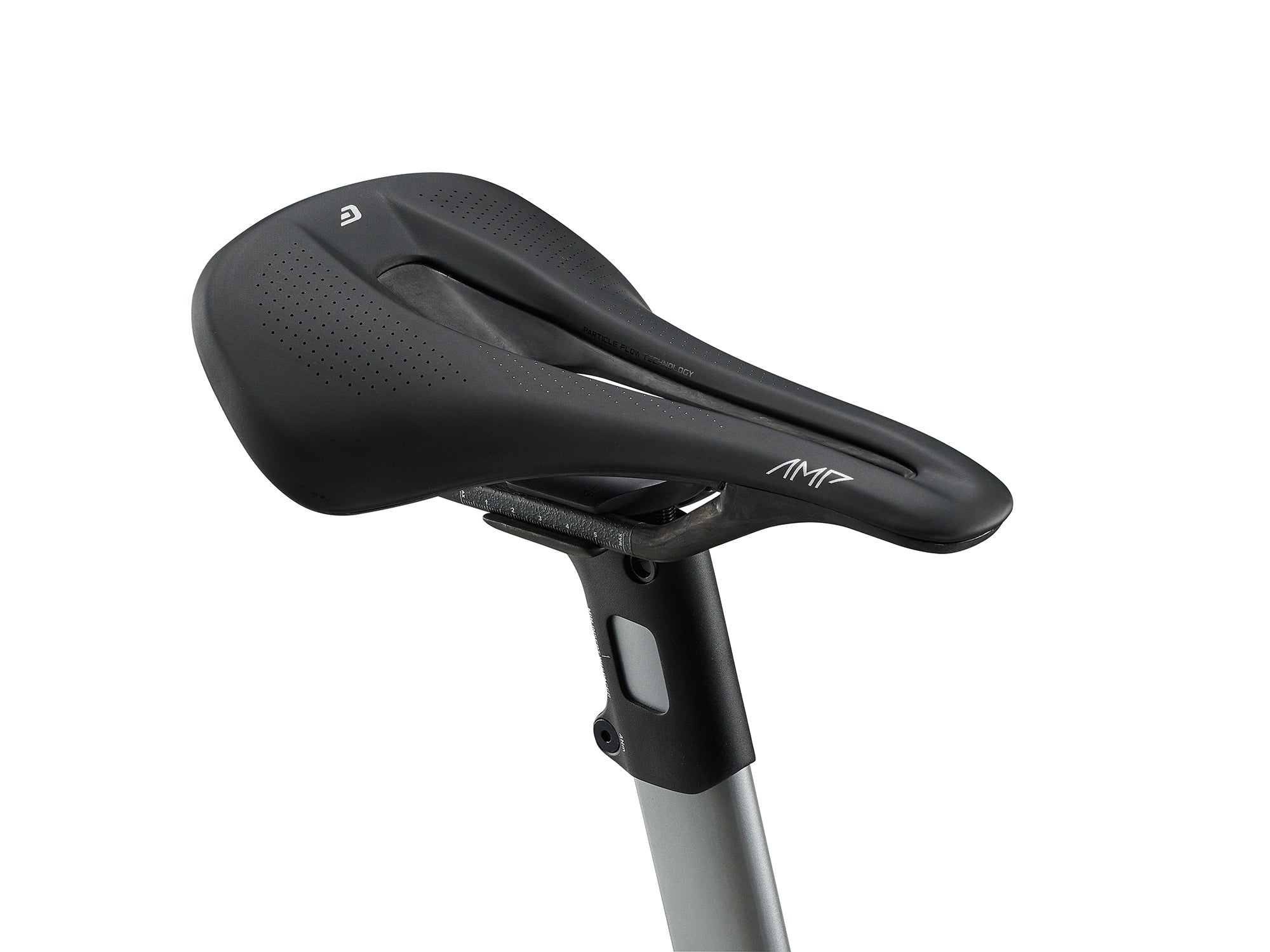

    Giant Fleet SL, stainless steel rail, 7x7mm
  • Pedals
    N/A
  • Shifters
    SRAM Red AXS E1
  • Front Derailleur
    SRAM Red AXS E1
  • Rear Derailleur
    SRAM Red AXS E1
  • Brakes
    SRAM Red AXS E1, SRAM Paceline X rotors, centerlock [F]160mm, [R]140mm
  • Brake Levers
    SRAM Red AXS E1
  • Cassette
    SRAM Red AXS E1, 12-speed, 10x33T
  • Chain
    SRAM Red AXS E1
  • Crankset

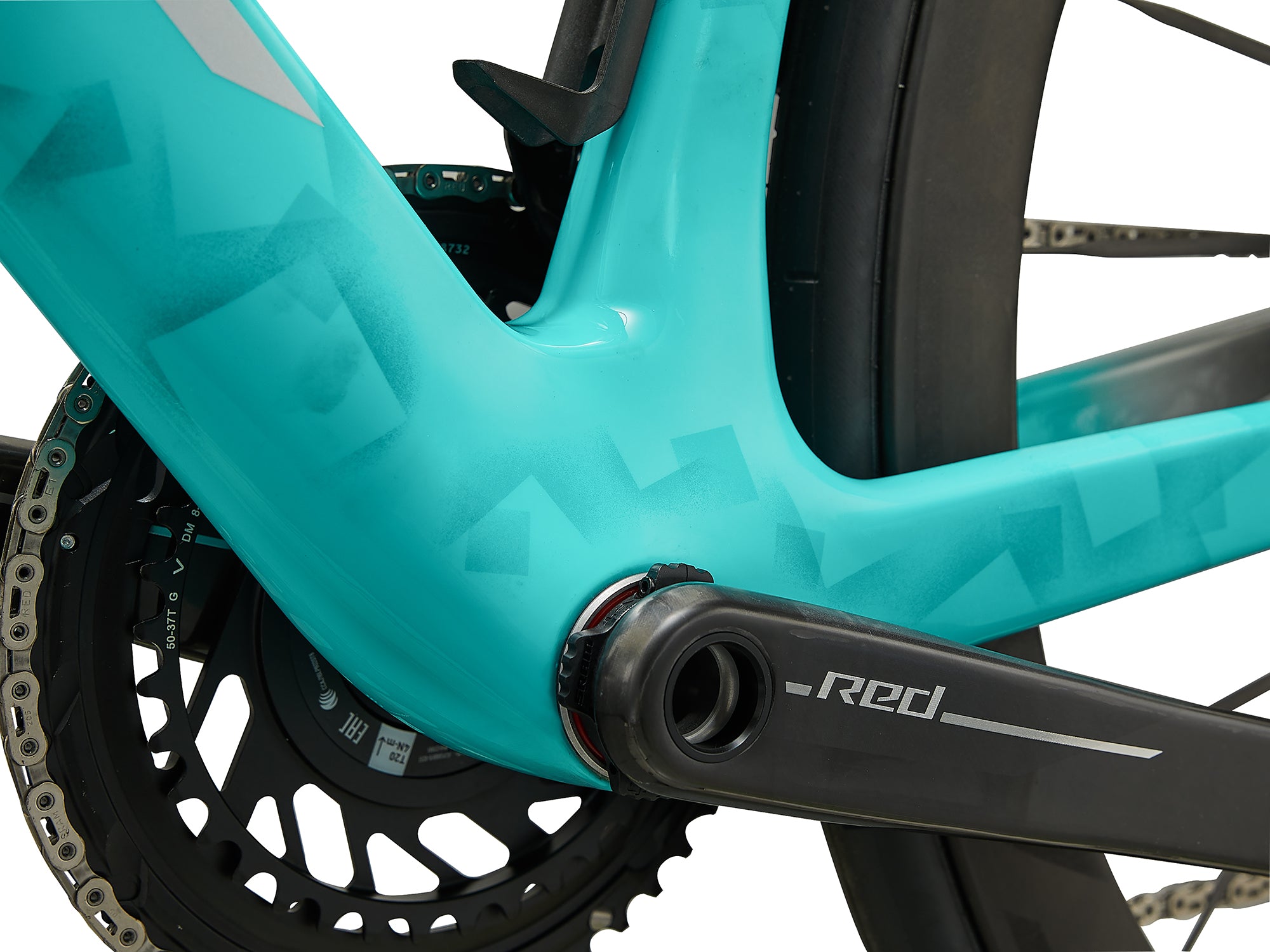

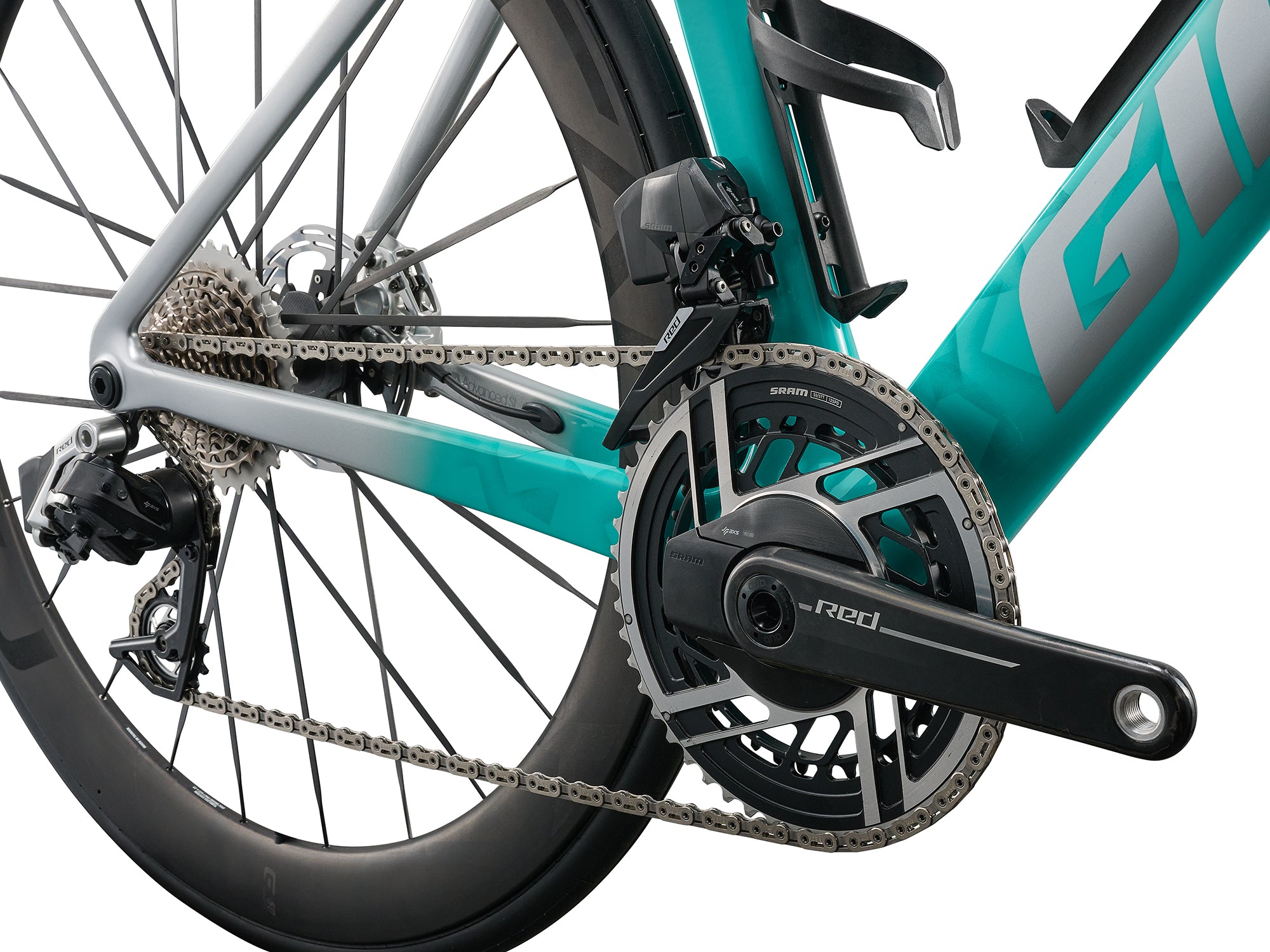

    SRAM Red AXS E1 with Quarq spider-based power meter, 35/48T
    XS & S: 165mm
    M & ML:170mm
    L & XL: 172.5mm
  • Bottom Bracket
    SRAM DUB ceramic PF86, press fit
  • Rims
    Cadex Max 50
    [F] 16 holes, 50mm depth, inner width: 22.4mm, outer width, 30mm
    [R] 24 holes, 50mm, inner width: 22.4mm, outer width, 30mm
  • Hubs
    [F] Cadex R3 Aero Hub, centerlock, 100x12mm thru-axle
    [R] Cadex R3 Aero Hub, centerlock, 142x12mm thru-axle, 48T ratchet driver
  • Spokes
    Cadex Super Aero Carbon, titanium nipples
  • Tyres
    Cadex Aero, tubeless, 700x28c, folding
  • Extras

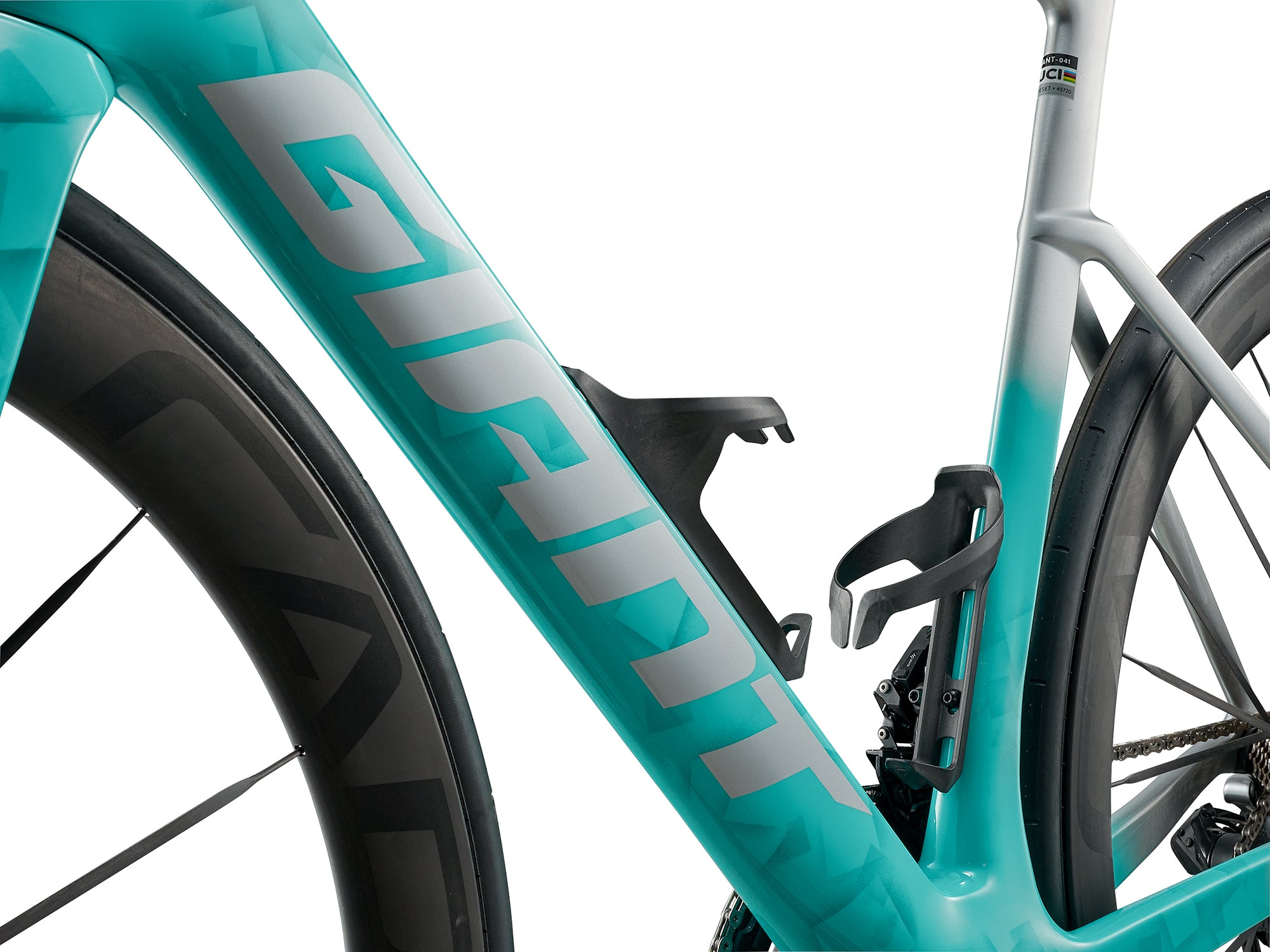

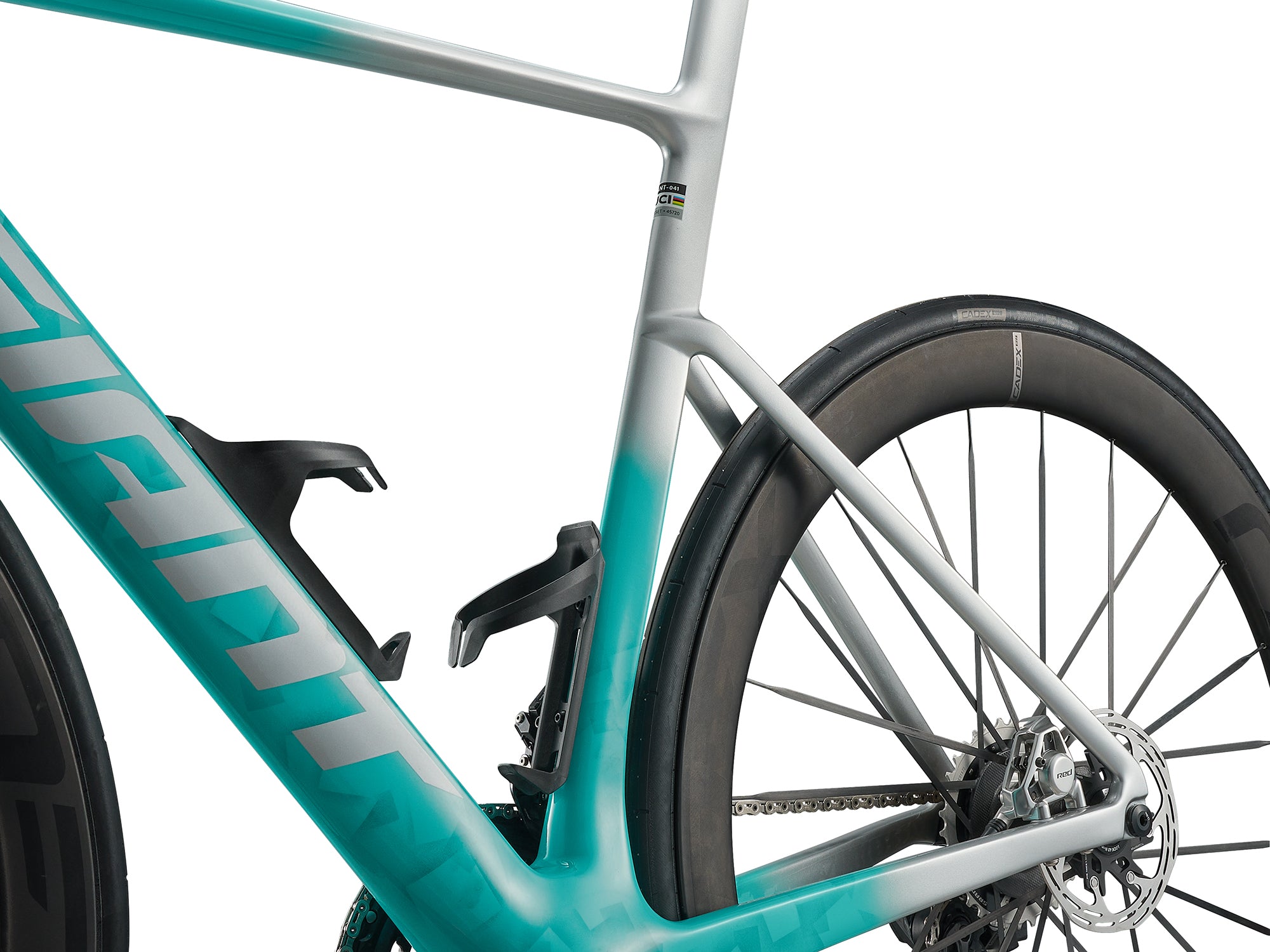

    computer mount, water bottle cages, tubeless prepared, 32mm max tyre size

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

Propel Adv SL (4th Gen)
XS S M ML L XL
A Seattube length 680 710 740 770 800 830
B Seattube angle (degrees) 74.50 74.0 73.50 73.00 73.00 72.50
C Toptube length 520 535 550 565 580 600
D Headtube length 115 127 145 165 185 200
E Headtube angle (degrees) 71.50 72.50 73.00 73.00 73.00 73.00
F Fork rake 45 45 45 45 45 45
G Trail 67.8 61.4 58.3 58.3 58.3 58.3
H Wheelbase 971 973 980 990 1006 1020
I Chainstay length 405 405 405 405 405 405
J Bottom bracket drop 72 72 69.5 69.5 67 67
K Stack 515 530 546 565 582 596
L Reach 377 383 388 392 402 412
M Standover height 746 764 787 808 832 847
N Handlebar width 380 380 400 400 420 420
O Stem length 80 90 100 110 110 120
P Crank length 165.0 165.0 170.0 170.0 172.5 172.5
Q Wheel size 700C 700C 700C 700C 700C 700C
*All measurements shown are in millimetres unless otherwise stated.
