Highlight
HIGHLIGHT
- Toughness that Last, Speed that Holds

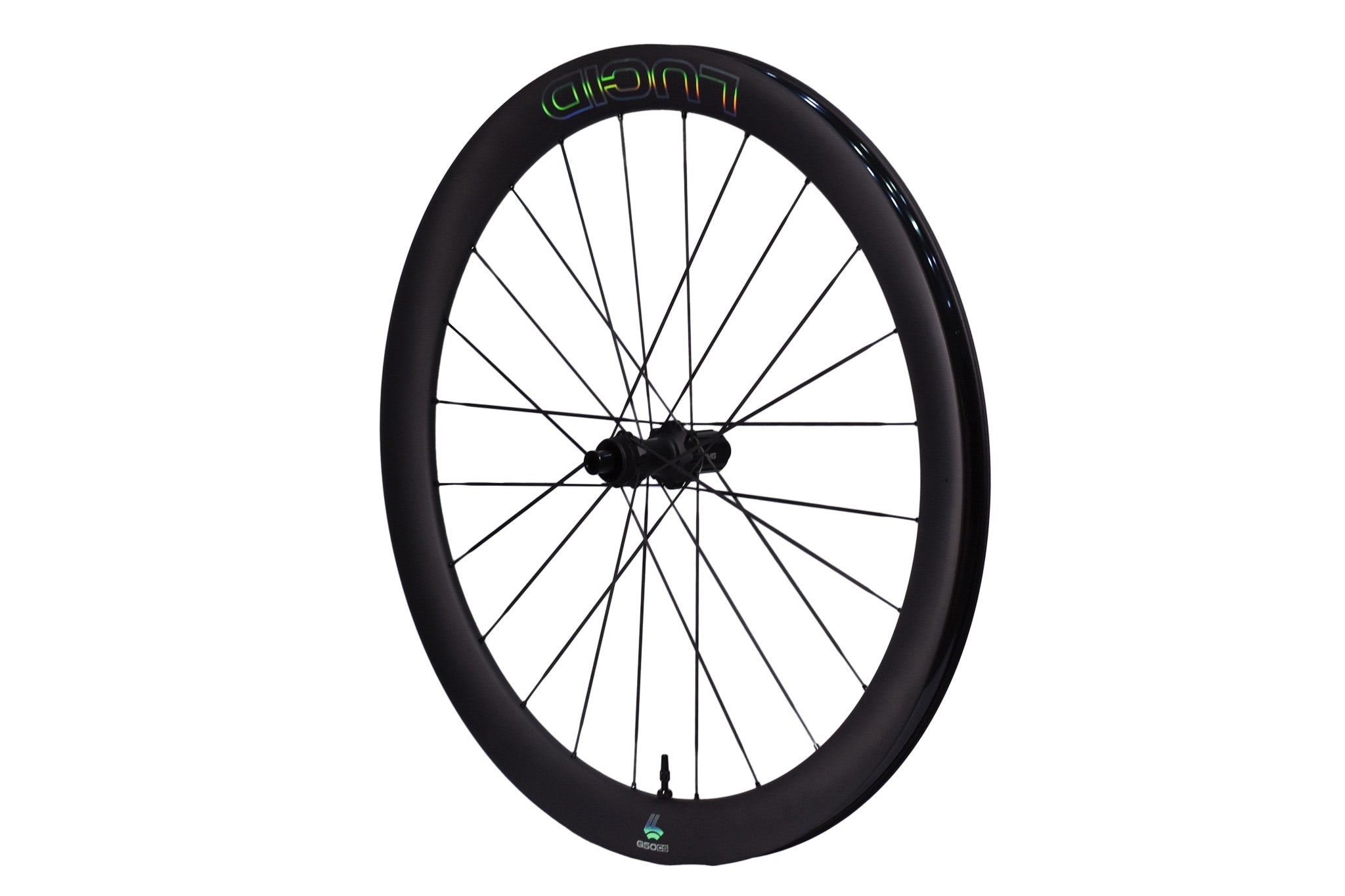

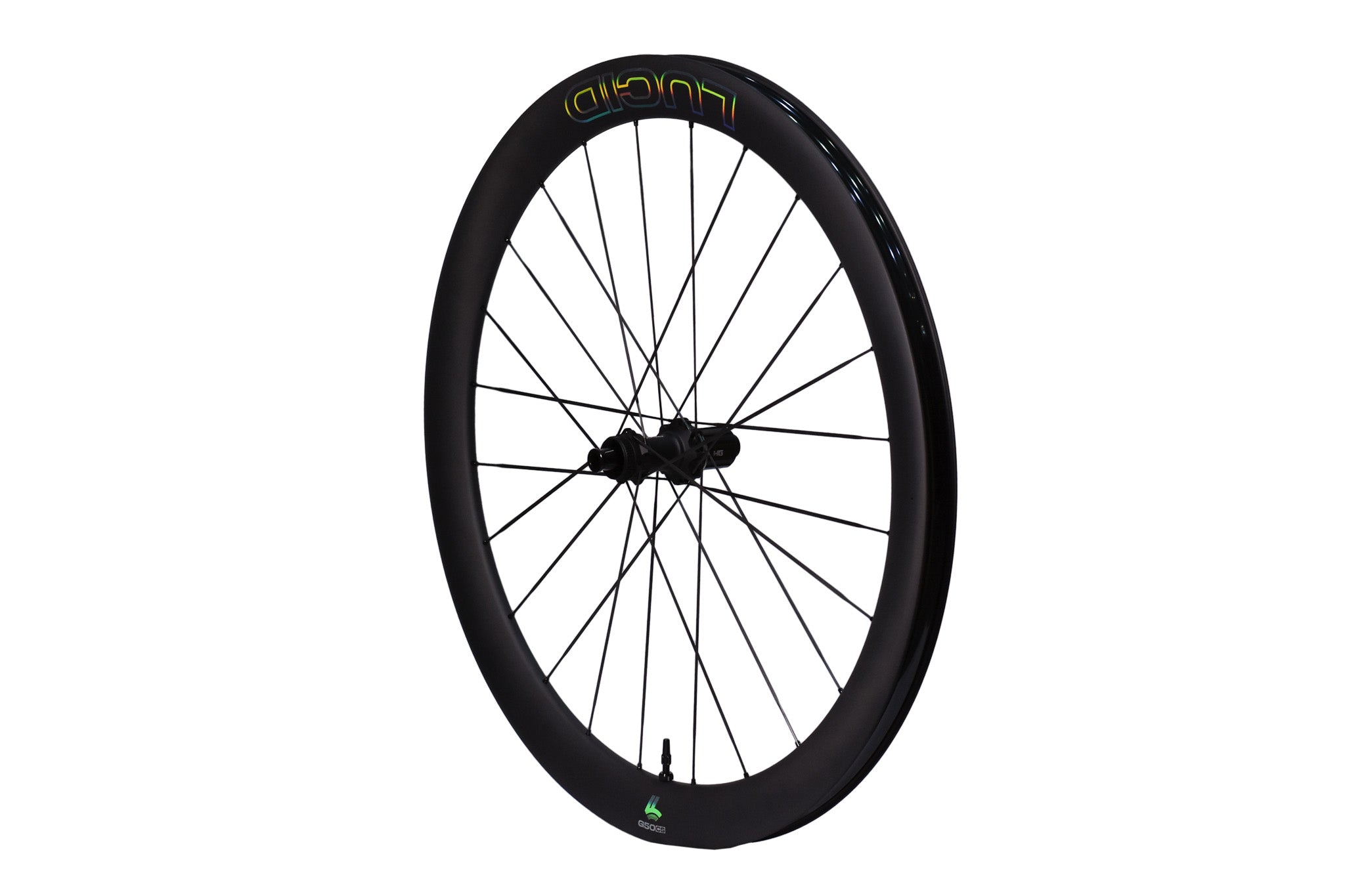

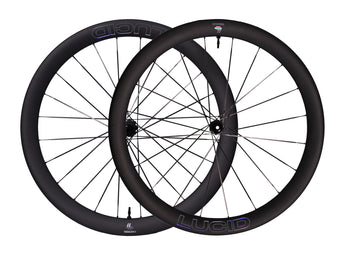

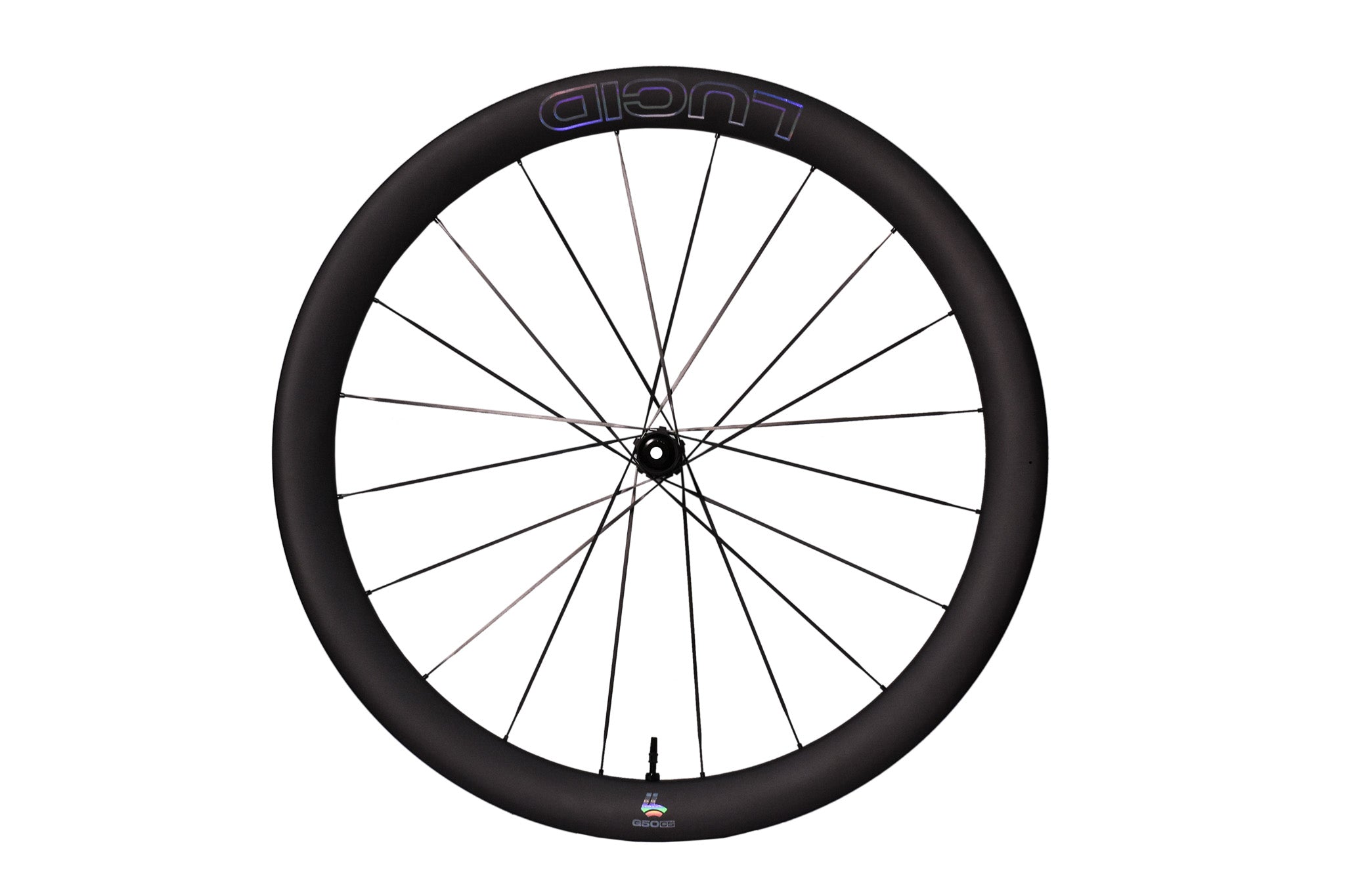

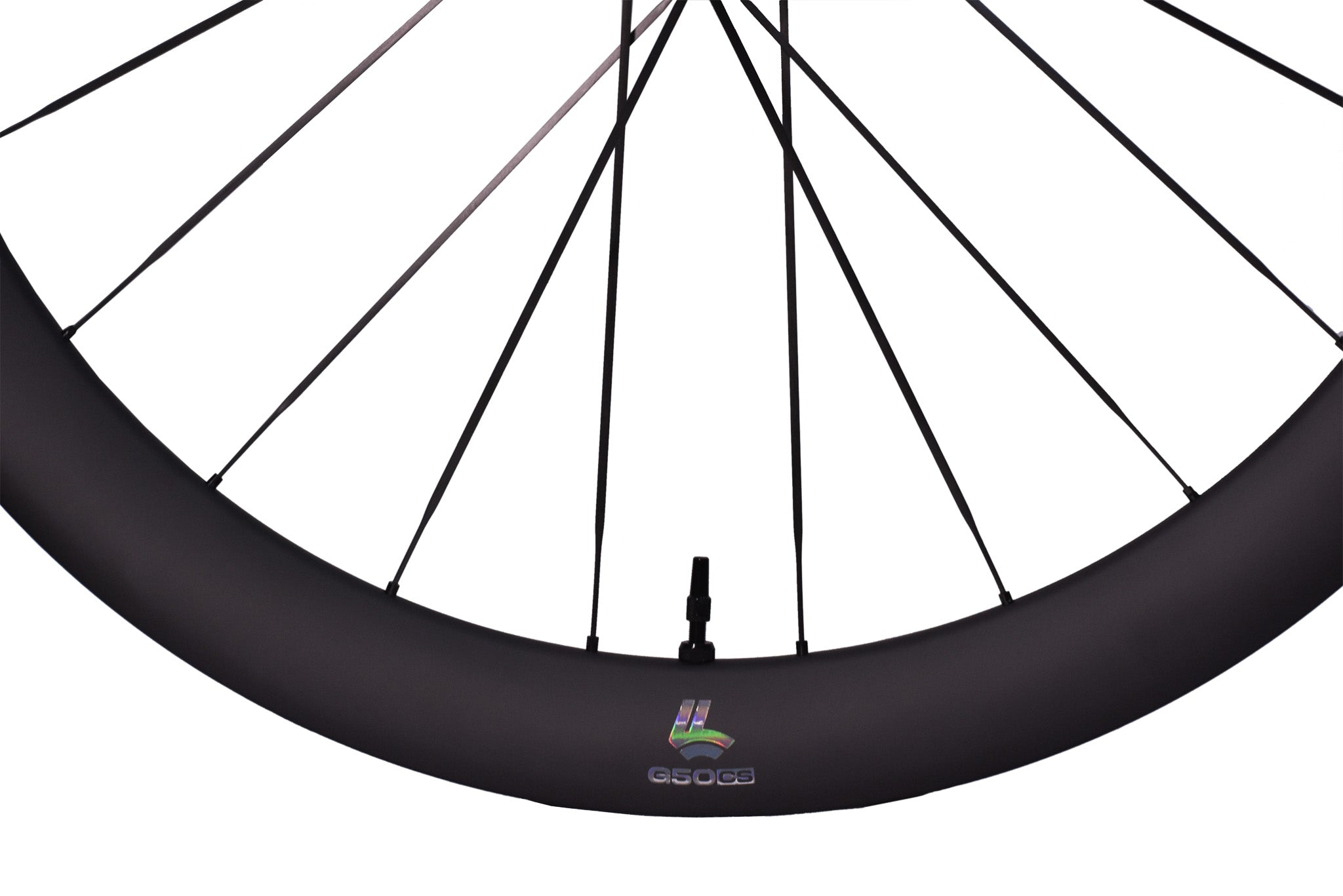

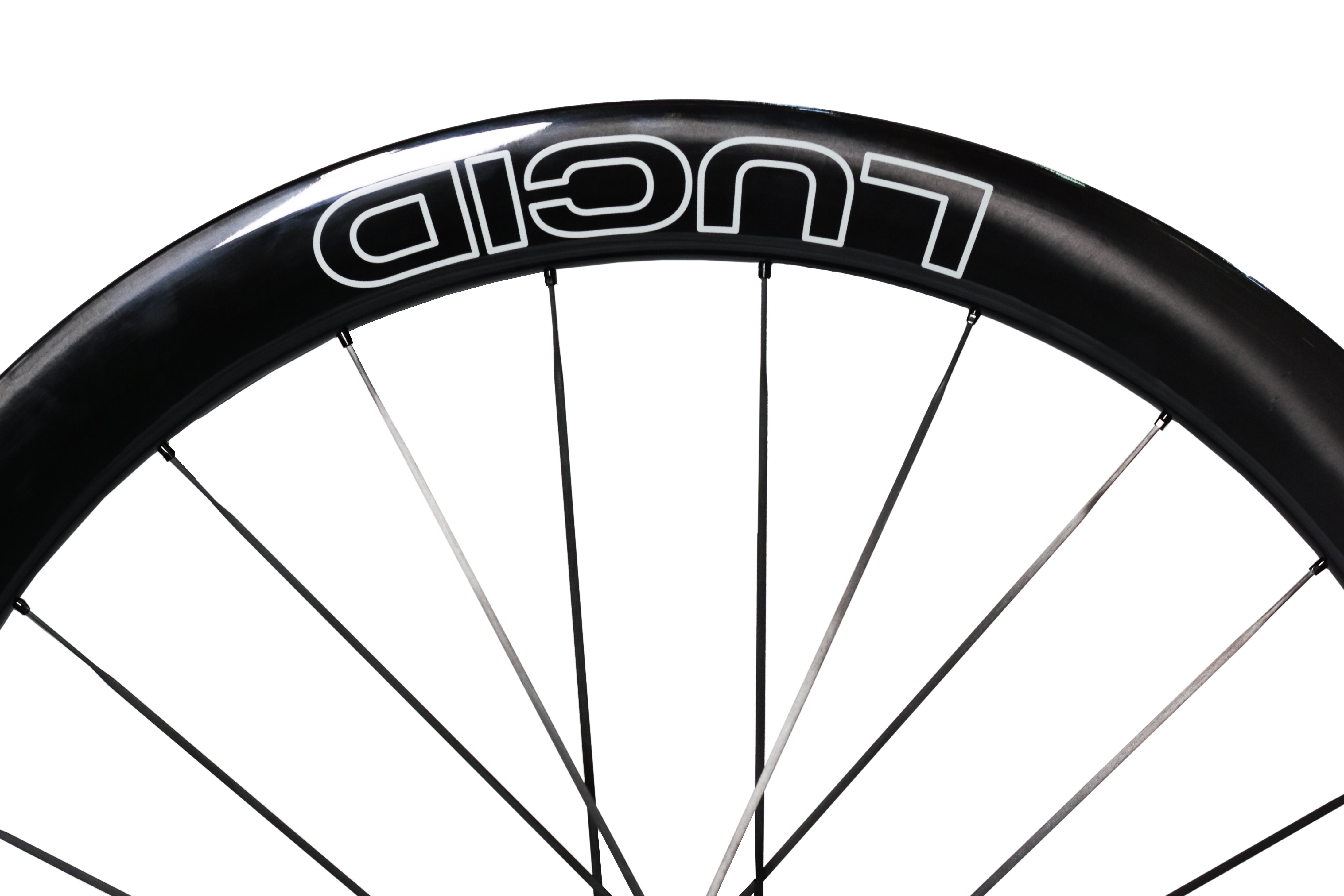

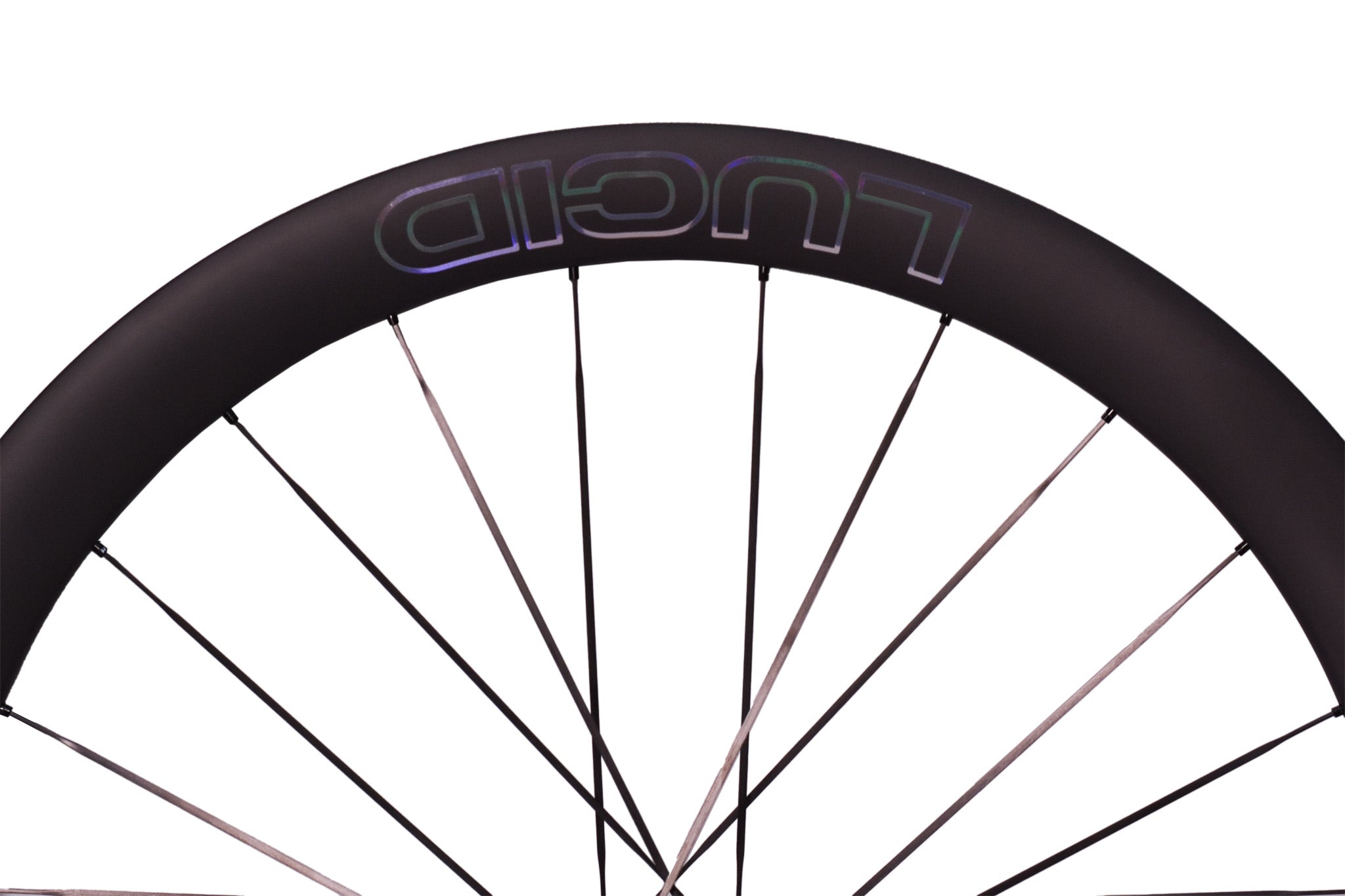

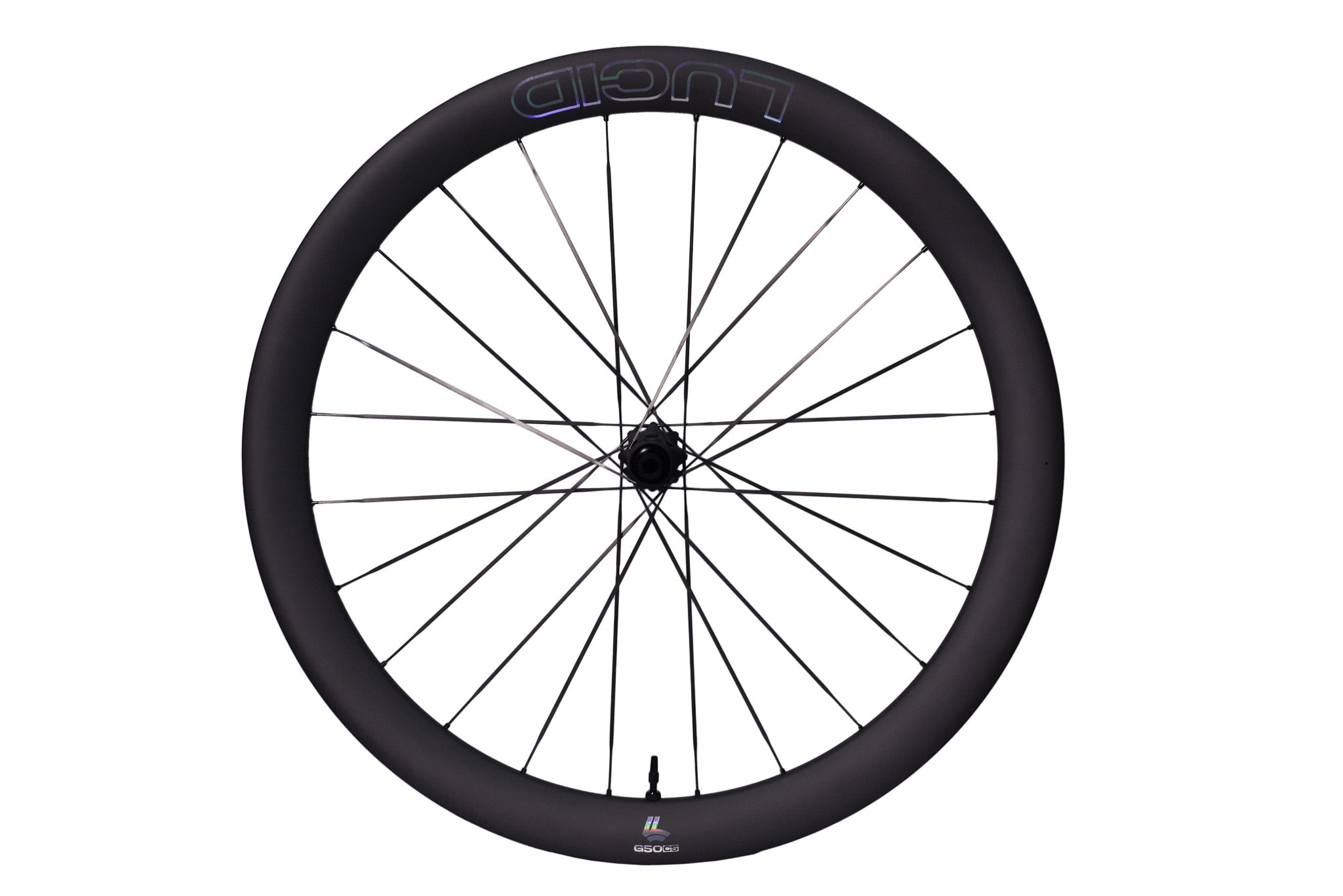

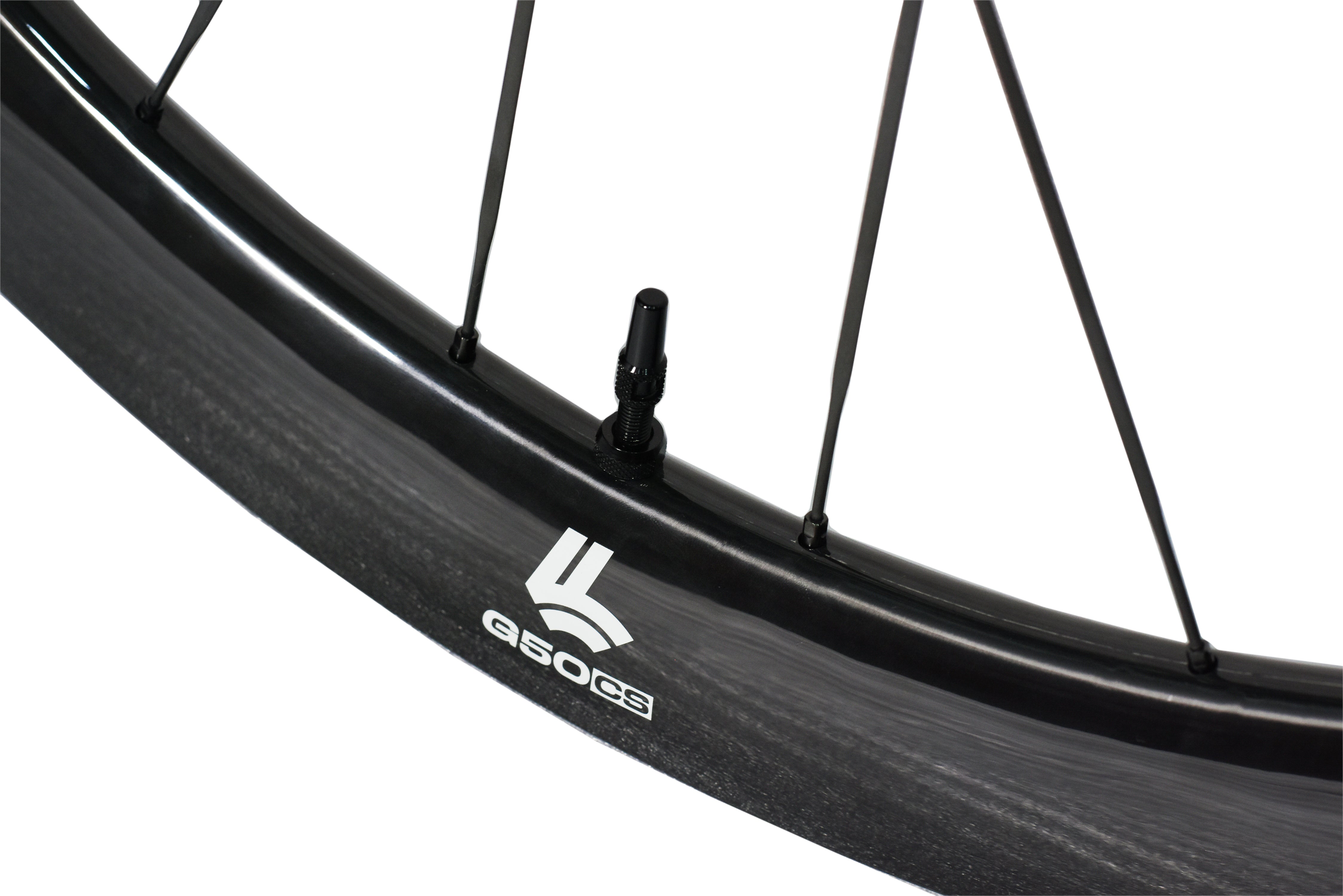

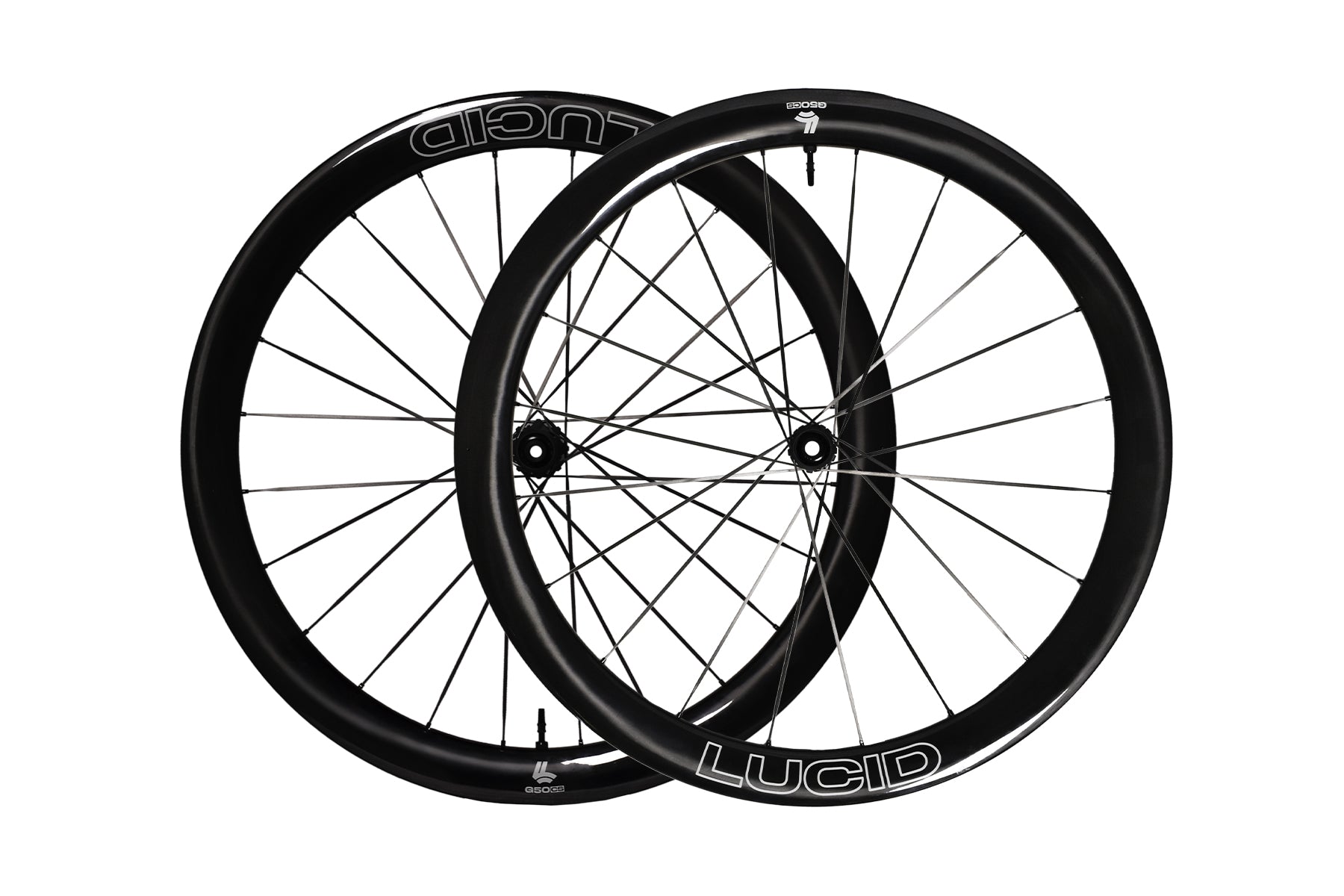

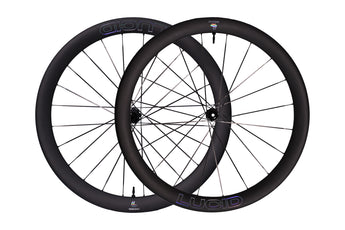

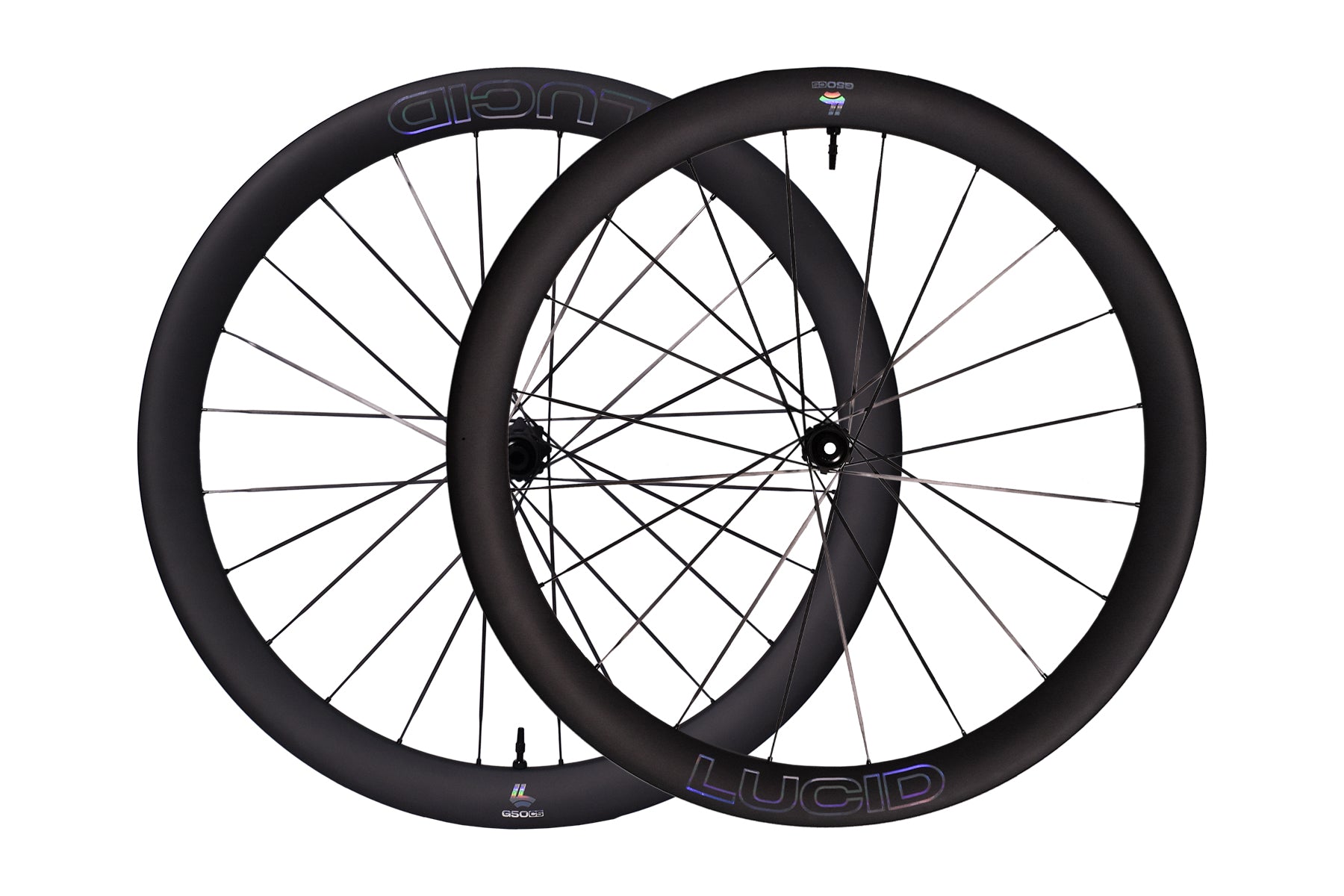

The G50CS is designed for gravel racing applications. Starting from the rim, 50mm deep with 2.75mm thick rim beads, these carbon rims are built to withstand impact you would expect off the tarmac.

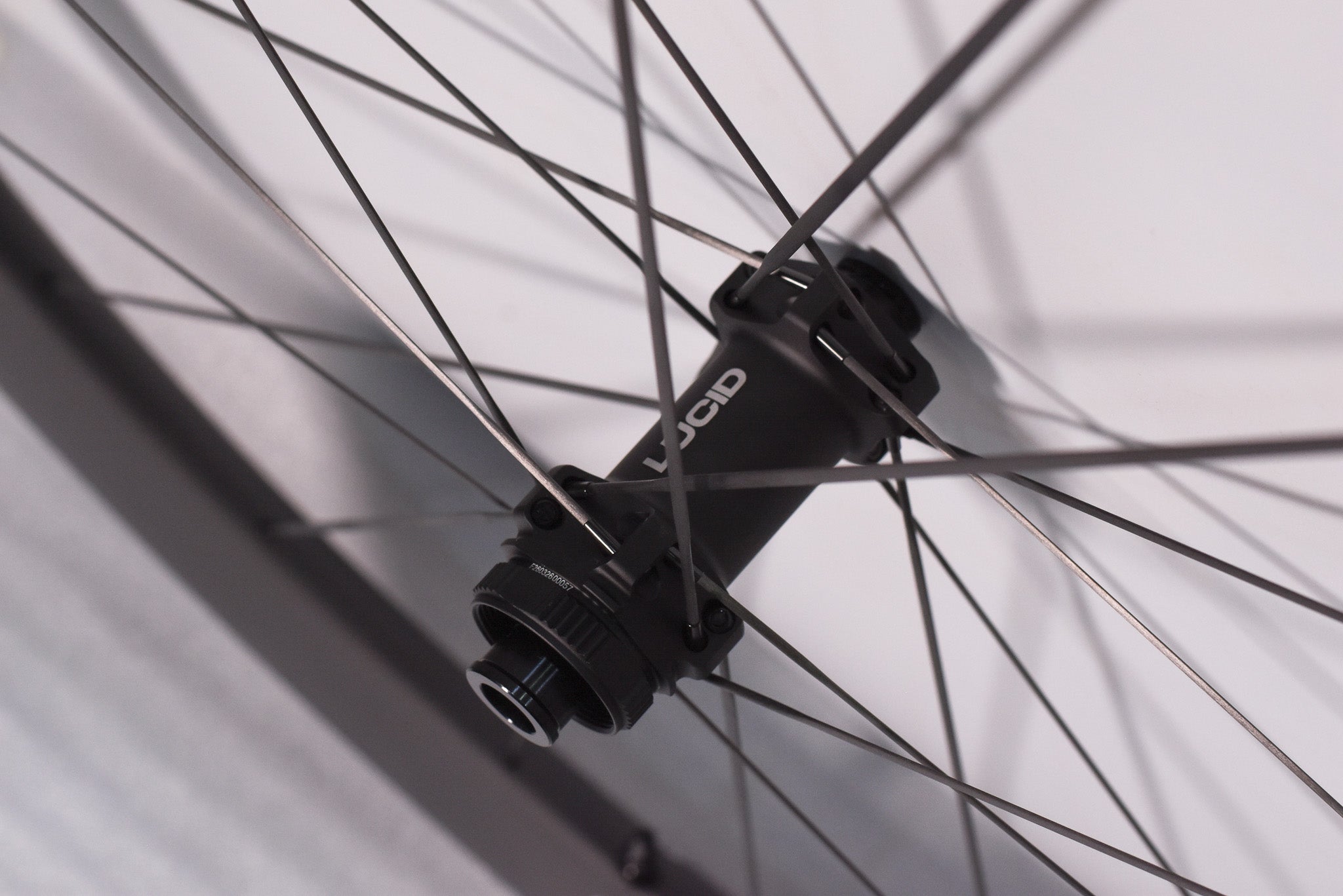

The lightweight construction of the G50 hubs is paired together with a 36-teeth star-ratchet hub to deliver a balance between responsiveness and coasting friction. Keeping the G50CS tight, are the thick ultra-lightweight carbon spokes with titanium alloy nipples. For gravel applications, the thicker 3.2mm diameter provides better durability while delivery superb acceleration characteristics.
SPECIFICATIONS
| Rim Material | Carbon |
|---|---|
|
Rim Type |
Carbon clincher hooked |
|
Tubeless |

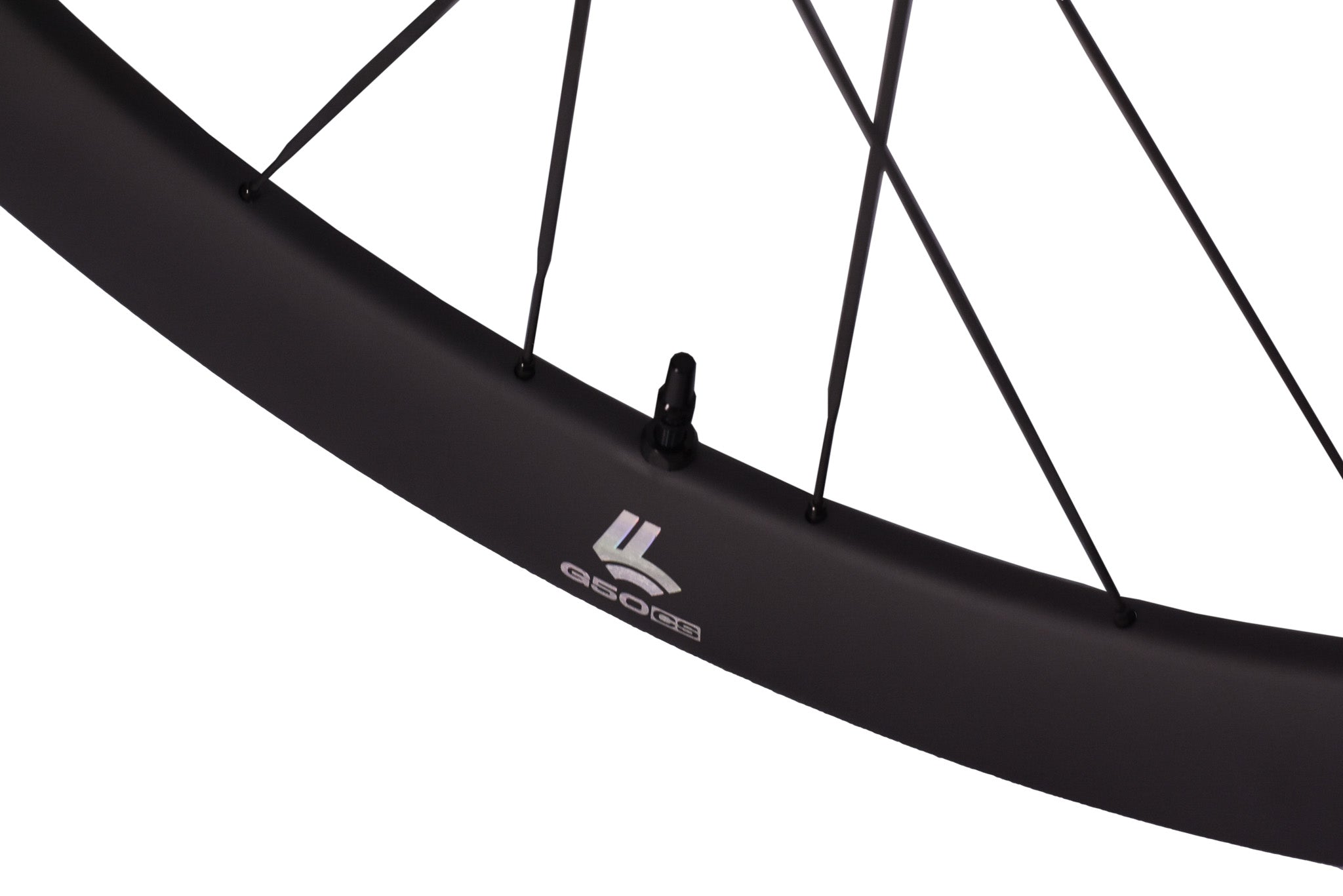

Tubeless compatible, rim tape and valves included |
| Rim Height |
50mm |
| Rim Outer Width |
31.5mm (35mm at widest point) |
|
Rim Inner Width |
26mm |
| ETRTO | 622-26 (recommended tyre width from 35-71mm) |

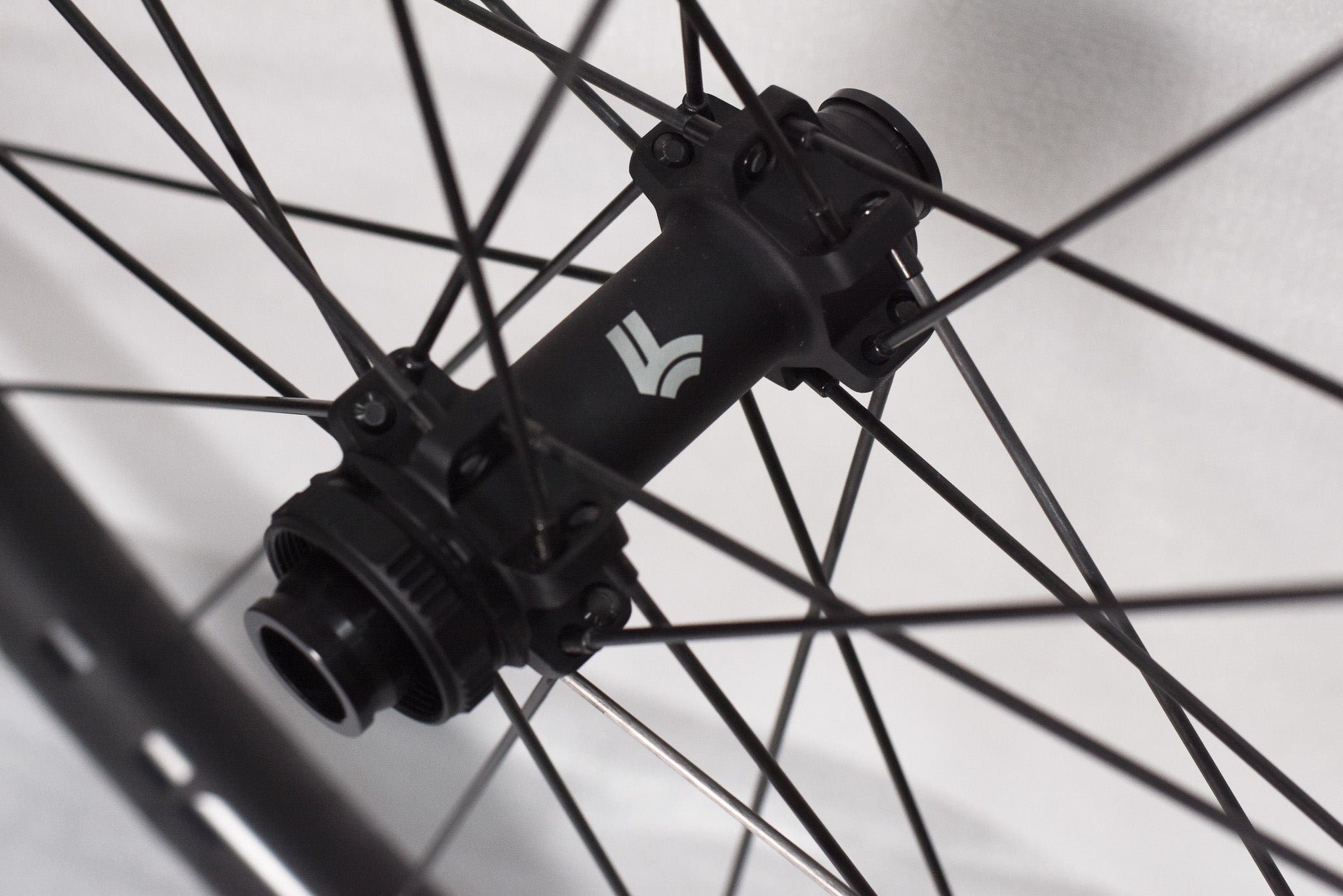

| Front Hub | Lucid G50 hub, centerlock, 100x12mm |

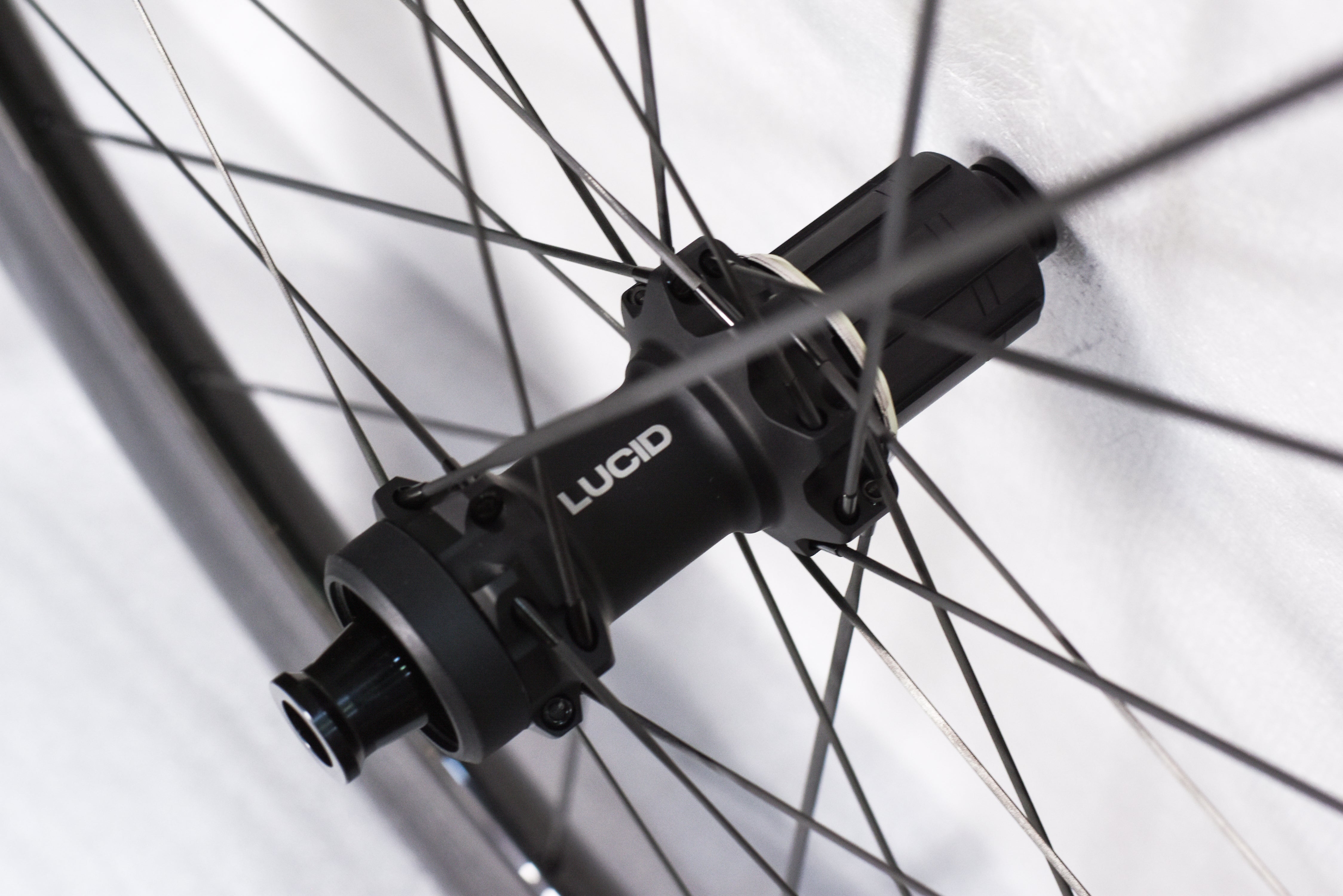

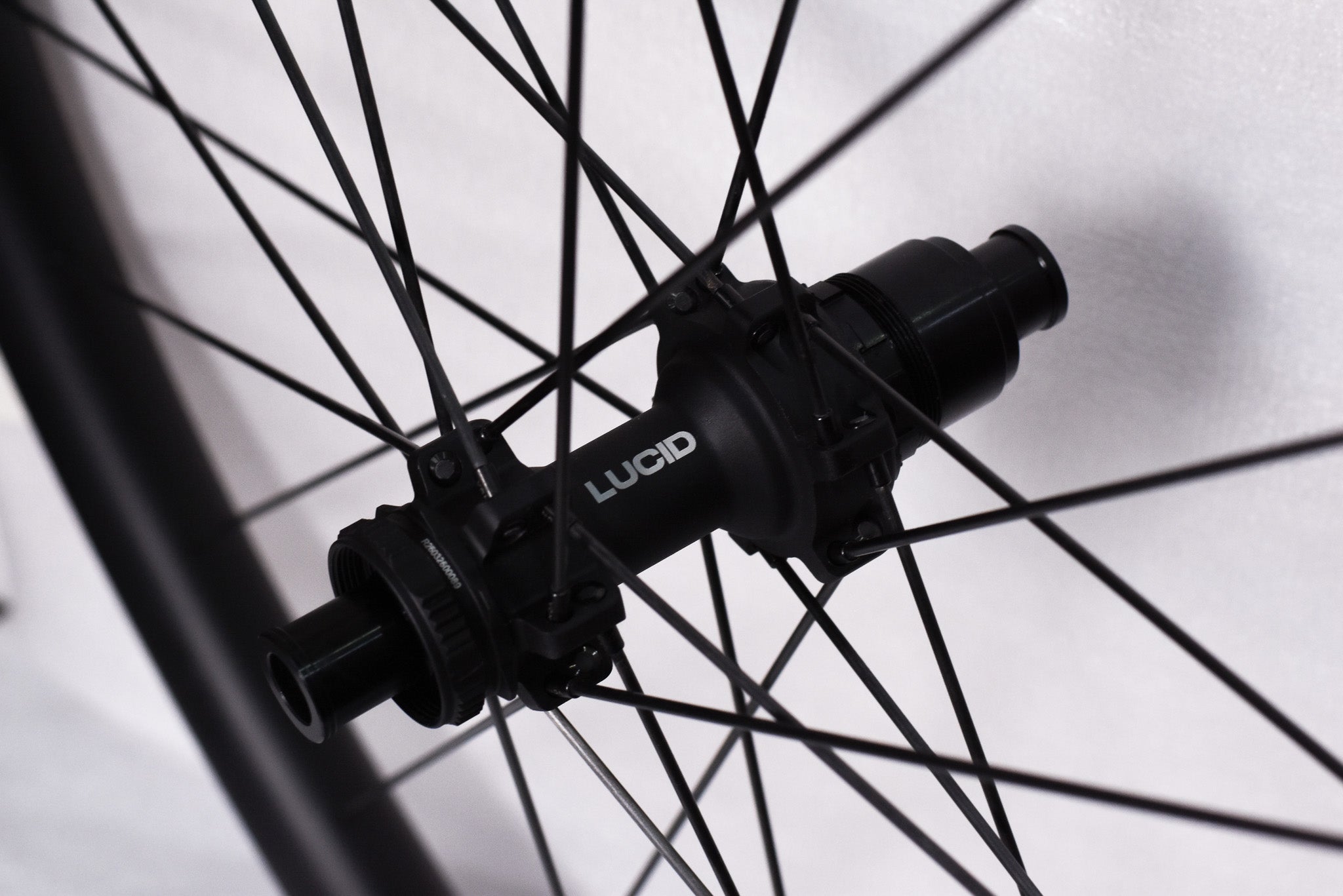

| Rear Hub | Lucid G50 hub, 36T star ratchet, centerlock, 142x12mm |
| Hub Compatibility | Shimano HG (SRAM XDR, sold separately) |
| Bearing |
Sealed cartridge stainless steel bearing |
| Spokes (Front & Rear) | 3.2mm diameter carbon spokes with titanium alloy nipples, threaded (F: 20, R: 24) |
| Weight (Pair) | 1,235g (+/- 2%), rim tape and tubeless valves included |
